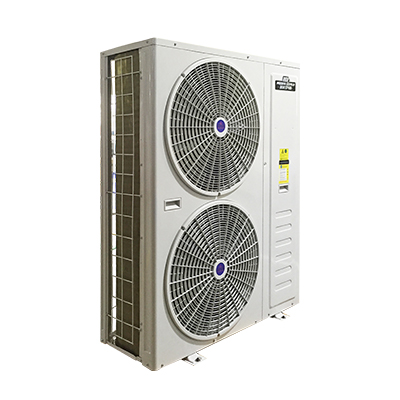

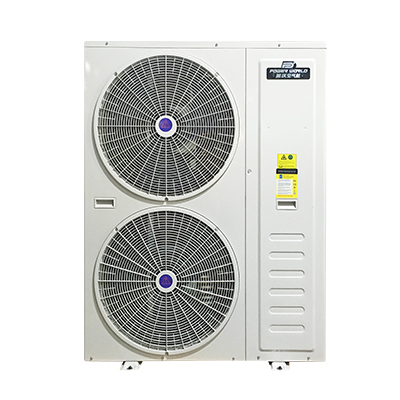

R410a DC Inverter Heat Pump

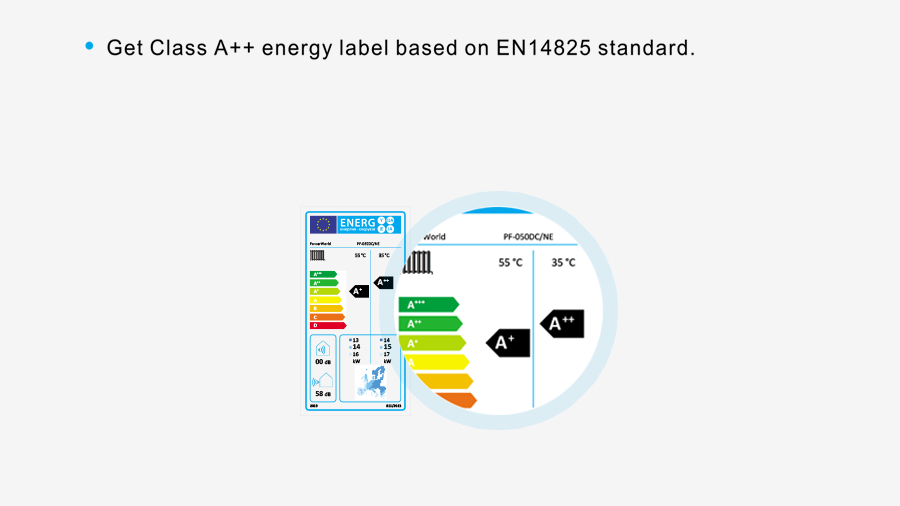

Get Class A++ energy label based on EN14825 standard.

EVI technology can work in-30degrees

Inverter Heat Pump

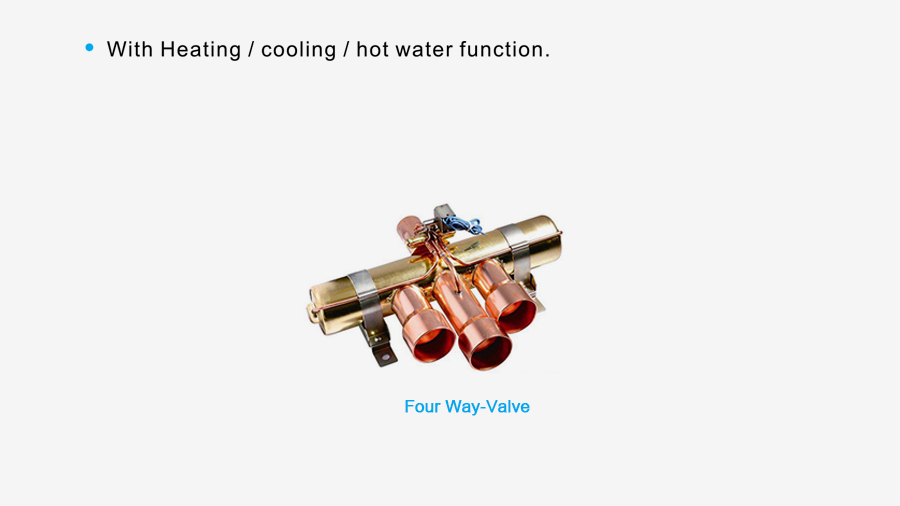

With Heating/cooling/ hot water function

Significantly reduced running costs(up to 50% saving)compared to non-inverter systems

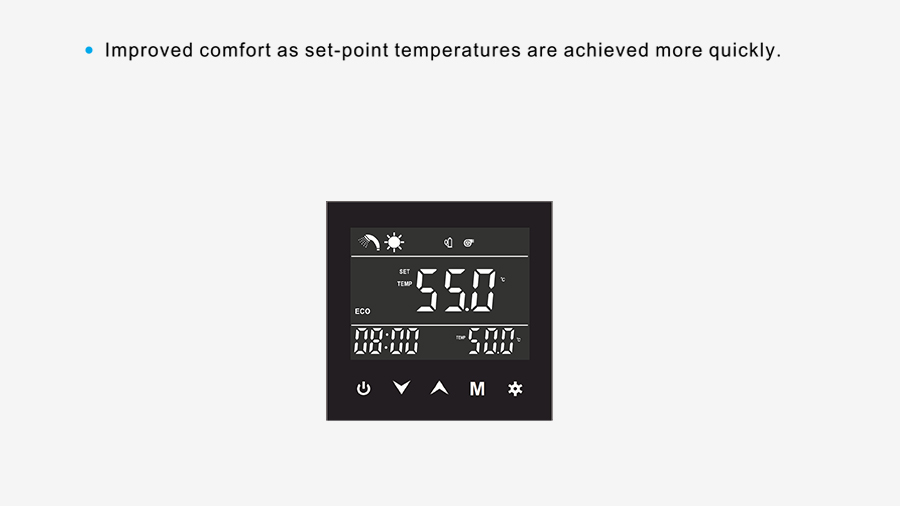

Improved comfort as set-point temperatures are achieved more quickly

Operating at air temperature-30-+43C, all year round running

Low noise owing to the axial fan and compressor unit with variable operating frequency

Product model		PF-030DC/E	PF-050DC/E	PF-050DC/NE
Cooling	Cooling capacity(kW)	7.7	12.8	12.8
	Cooling capacity Min / Max(kW)	4.9/8.9	8.2/14.8	8.2/14.8
	Cooling input power(kW)	2.6	4.2	4.2
	Cooling input power Min / Max (kW)	1.5/3.7	2.5/6.0	2.5/6.0
	Rated current (A)	12.7	20.5	8.4
	Current Min / Max (A)	7.3/18.1	12.2/29.3	5.0/12.0
	EER	2.96	3.05	3.05
	EER Min / Max	2.41/3.27	2.47/3.28	2.47/3.28
Heating	Heating capacity(kW)	11.8	18.8	18.8
	Heating capacity Min / Max (kW)	7.4/15.9	11.7/23.5	11.7/23.5
	Heating input power(kW)	2.64	4.2	4.2
	Heating input power Min / Max (kW)	1.5/3.9	2.4/6.4	2.4/6.4
	Rated current (A)	12.8	21	8.4
	Current Min / Max (A)	7.5/19.3	11.7/30.5	4.8/12.8
	COP	4.47	4.48	4.48
	COP Min / Max	3.69/4.9	3.67/4.88	3.67/4.88
DHW	Heating capacity(kW)	9.5	15.4	15.4
	Heating capacity Min / Max (kW)	5.9/12.8	9.4/19.8	9.4/19.8
	Heating input power(kW)	2.7	4.4	4.4
	Heating input power Min / Max (kW)	1.5/4.2	2.4/6.8	2.4/6.8
	Rated current (A)	13	22	8.8
	Current Min / Max (A)	7.3/19.7	12.1/32.8	4.8/13.6
	COP	3.52	3.50	3.50
	COP Min / Max	3.05/3.93	2.91/3.92	2.91/3.92
Refrigerant		R410A
Power supply		208~240V~/50Hz		380~415V/3N~/50Hz
Working area		-30～43℃
Water circulation （m³/H）		2.03	3.23	3.23
Water pressure drop （kPa）		25	30	30
IP Grade (Level of protection)		IPX4	IPX4	IPX4
Anti-electric shock Rate		I	I	I
Noise (dB(A))		≤53	≤58	≤58
Net weight/Gross weight(kg)		110/120	145/155	145/155
Diameter of pipe (mm)		DN25	DN25	DN25
Body size(WDH)		1115425710	10504801330	10504801330
Packing size(WDH)		1105101080	11205301450	11205301450
Loading quantity (20GP/40GP/40HQ)		48/100/150	18/42/42	18/42/42
Remark: Cooling working condition:Inlet water temperature 12℃, Outlet water temperature 7℃, Dry bulb temperature 35℃, Wet bulb temperature 24℃. Heating working condition: Inlet water temperature 30℃, Outlet water temperature 35℃, Dry bulb temperature 7℃, Wet bulb temperature6℃. DHW working condition: Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 7℃, Wet bulb temperature 6℃.

Product model		PF-030DC/E	PF-050DC/E	PF-050DC/NE
Cooling	Cooling capacity(kW)	7.7	12.8	12.8
	Cooling capacity Min / Max(kW)	4.9/8.9	8.2/14.8	8.2/14.8
	Cooling input power(kW)	2.6	4.2	4.2
	Cooling input power Min / Max (kW)	1.5/3.7	2.5/6.0	2.5/6.0
	Rated current (A)	12.7	20.5	8.4
	Current Min / Max (A)	7.3/18.1	12.2/29.3	5.0/12.0
	EER	2.96	3.05	3.05
	EER Min / Max	2.41/3.27	2.47/3.28	2.47/3.28
Heating	Heating capacity(kW)	11.8	18.8	18.8
	Heating capacity Min / Max (kW)	7.4/15.9	11.7/23.5	11.7/23.5
	Heating input power(kW)	2.64	4.2	4.2
	Heating input power Min / Max (kW)	1.5/3.9	2.4/6.4	2.4/6.4
	Rated current (A)	12.8	21	8.4
	Current Min / Max (A)	7.5/19.3	11.7/30.5	4.8/12.8
	COP	4.47	4.48	4.48
	COP Min / Max	3.69/4.9	3.67/4.88	3.67/4.88
DHW	Heating capacity(kW)	9.5	15.4	15.4
	Heating capacity Min / Max (kW)	5.9/12.8	9.4/19.8	9.4/19.8
	Heating input power(kW)	2.7	4.4	4.4
	Heating input power Min / Max (kW)	1.5/4.2	2.4/6.8	2.4/6.8
	Rated current (A)	13	22	8.8
	Current Min / Max (A)	7.3/19.7	12.1/32.8	4.8/13.6
	COP	3.52	3.50	3.50
	COP Min / Max	3.05/3.93	2.91/3.92	2.91/3.92
Refrigerant		R410A
Power supply		208~240V~/50Hz		380~415V/3N~/50Hz
Working area		-30～43℃
Water circulation （m³/H）		2.03	3.23	3.23
Water pressure drop （kPa）		25	30	30
IP Grade (Level of protection)		IPX4	IPX4	IPX4
Anti-electric shock Rate		I	I	I
Noise (dB(A))		≤53	≤58	≤58
Net weight/Gross weight(kg)		110/120	145/155	145/155
Diameter of pipe (mm)		DN25	DN25	DN25
Body size(WDH)		1115425710	10504801330	10504801330
Packing size(WDH)		1105101080	11205301450	11205301450
Loading quantity (20GP/40GP/40HQ)		48/100/150	18/42/42	18/42/42
Remark: Cooling working condition:Inlet water temperature 12℃, Outlet water temperature 7℃, Dry bulb temperature 35℃, Wet bulb temperature 24℃. Heating working condition: Inlet water temperature 30℃, Outlet water temperature 35℃, Dry bulb temperature 7℃, Wet bulb temperature6℃. DHW working condition: Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 7℃, Wet bulb temperature 6℃.
