ON/OFF heat pump

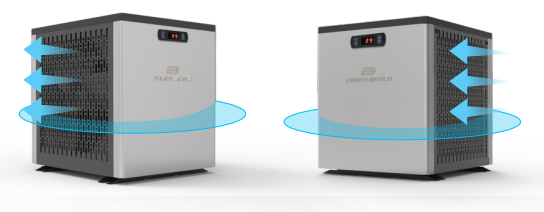

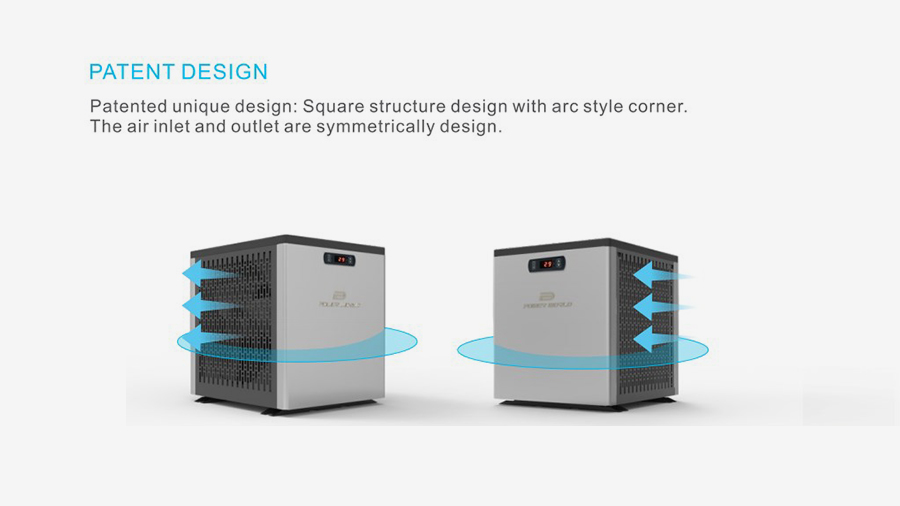

PATENT DESIGN

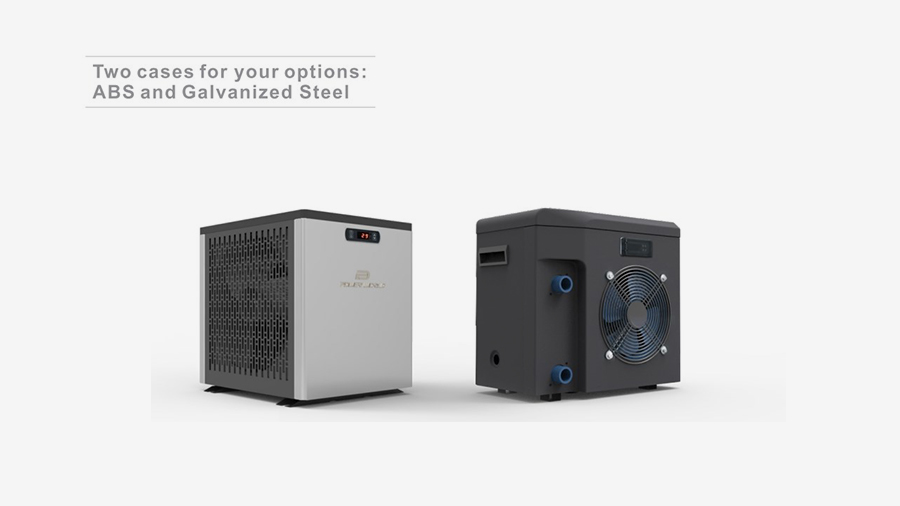

Patented unique design: Square structure design with arc style corner. The air inlet and outlet are symmetrically design.

above ground pool heat pump

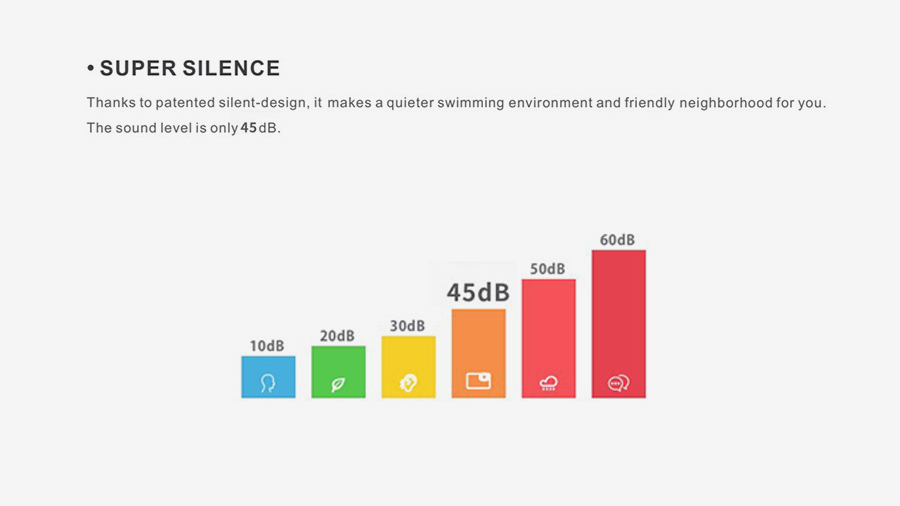

SUPER SILENCE
Thanks to patented silent-design, mini pro pool heat pump makes a quieter swimming environment and friendly neighborhood for you. The sound level is only 45dB.

above ground pool heat pump

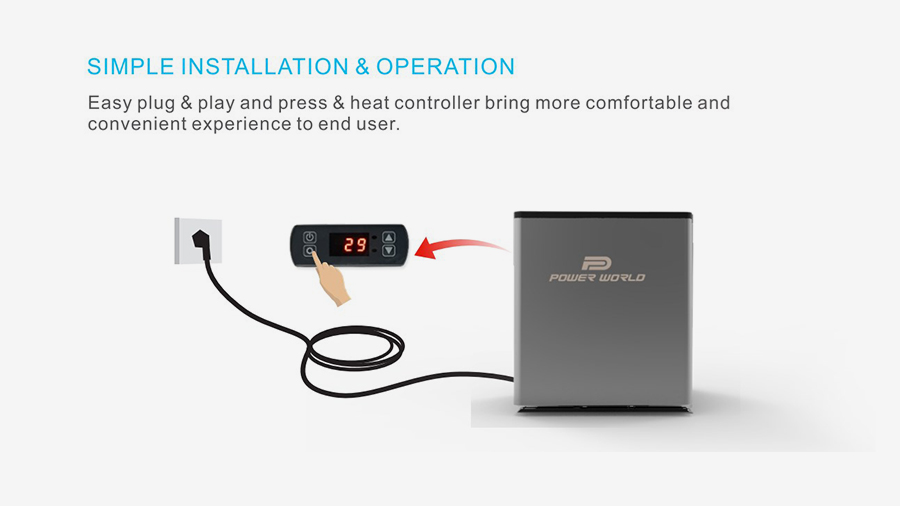

SIMPLE INSTALLATION & OPERATION
Simple pool heat pump installation and easy plug & play and press heat controller bring more comfortable and convenient experience to end user.

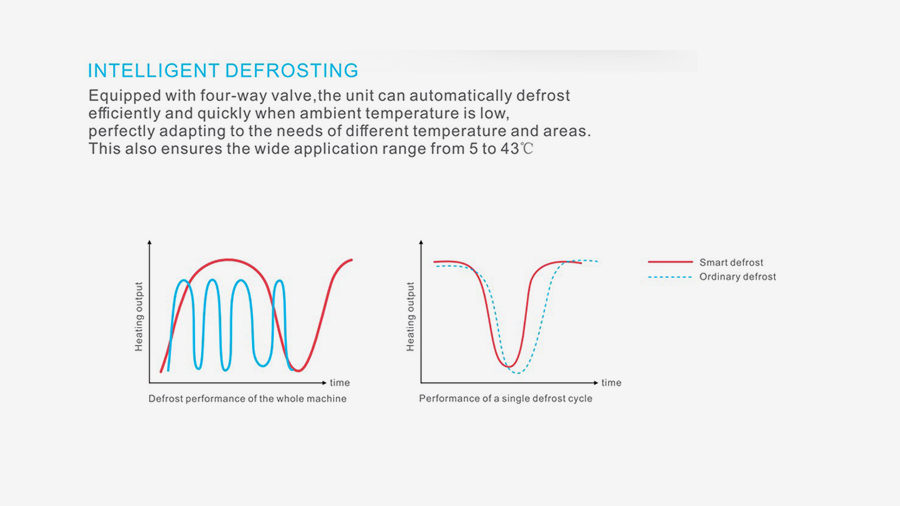

INTELLIGENT DEFROSTING
The mini pro pool heat pump is equipped with a four-way valve, which can intelligently defrost, efficiently and quickly, in low ambient temperature, perfectly adapt to the needs of different temperature areas.
This also assures the wide application range -5 ~ 43℃.

Model	PW005-KZXYC-F	PW008-KZXYC-F	PW012-KZXYC-F	PW015-KZXYC-F
Advised pool volume (m3)	5~15	10~20	12~22	15~25
Operating air temperature (℃)	-5 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	2.8	3.5	4.5	5.5
Heating Capacity(Btu)	9520	11900	15300	18700
Consumed power (kW)	0.56	0.65	0.83	1.02
COP	5.0	5.4	5.4	5.4
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	2.0	2.5	3.3	3.9
Heating Capacity(Btu)	6800	8500	11050	13328
Consumed power (kW)	0.53	0.63	0.81	0.98
COP	3.8	4.0	4.0	4.0
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	1.5	2.0	2.6	3.3
Sound pressure at 1m dB(A)	45	46	47	48
Sound pressure at 10m dB(A)	28	30	31	32
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	220 ~240V/1 Ph/50Hz
Water Connection (mm)	Φ32
Rated input current at air 15℃（A）	2.42	2.88	3.50	4.30
Advised water flux (m³/h)	1.0-1.5	1.5-2.0	1.7-2.2	2.0-2.5
Water Pressure Drop (max) kPa	2	2	4	4
Net weight/Gross weight（kg)	25/27	26/28	33/36	34/37
Carton size（mm）	394444435mm		498499500mm
Package size（mm）（carton）	420510485		555576542
Package size（mm）（Polywood）	437510475		572576545
Loading quantity (20GP/40GP/40HQ)	208/416/520		144/288/288
Refrigerant consumption（g）	200g	265g	320g	380g
Refrigerant	R32
Compressor	Gree
Four-way valve	Sanhua
Expansion valve	Sanhua
Operating water temperature (℃) heating	9 ~43
Operating water temperature (℃) cooling	9 ~35

Model	PW005-KZXYC-F	PW008-KZXYC-F	PW012-KZXYC-F	PW015-KZXYC-F
Advised pool volume (m3)	5~15	10~20	12~22	15~25
Operating air temperature (℃)	-5 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	2.8	3.5	4.5	5.5
Heating Capacity(Btu)	9520	11900	15300	18700
Consumed power (kW)	0.56	0.65	0.83	1.02
COP	5.0	5.4	5.4	5.4
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	2.0	2.5	3.3	3.9
Heating Capacity(Btu)	6800	8500	11050	13328
Consumed power (kW)	0.53	0.63	0.81	0.98
COP	3.8	4.0	4.0	4.0
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	1.5	2.0	2.6	3.3
Sound pressure at 1m dB(A)	45	46	47	48
Sound pressure at 10m dB(A)	28	30	31	32
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	220 ~240V/1 Ph/50Hz
Water Connection (mm)	Φ32
Rated input current at air 15℃（A）	2.42	2.88	3.50	4.30
Advised water flux (m³/h)	1.0-1.5	1.5-2.0	1.7-2.2	2.0-2.5
Water Pressure Drop (max) kPa	2	2	4	4
Net weight/Gross weight（kg)	25/27	26/28	33/36	34/37
Carton size（mm）	394444435mm		498499500mm
Package size（mm）（carton）	420510485		555576542
Package size（mm）（Polywood）	437510475		572576545
Loading quantity (20GP/40GP/40HQ)	208/416/520		144/288/288
Refrigerant consumption（g）	200g	265g	320g	380g
Refrigerant	R32
Compressor	Gree
Four-way valve	Sanhua
Expansion valve	Sanhua
Operating water temperature (℃) heating	9 ~43
Operating water temperature (℃) cooling	9 ~35
