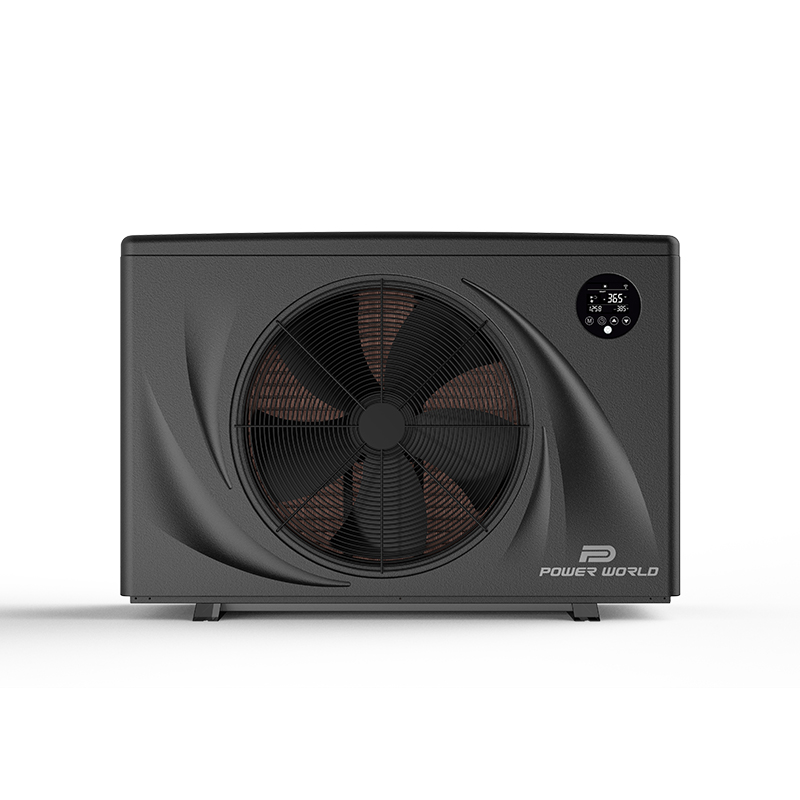

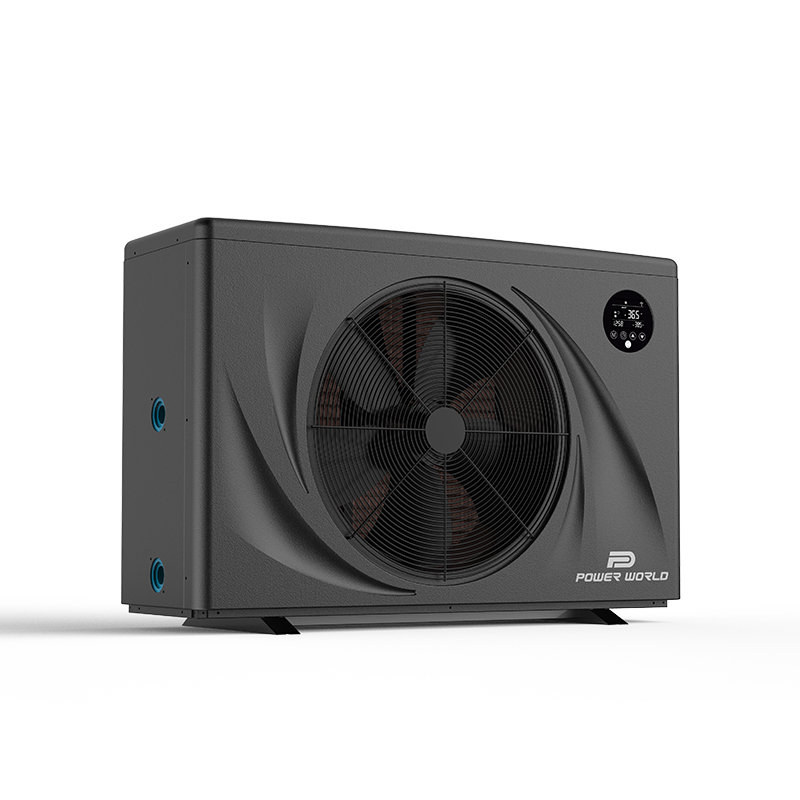

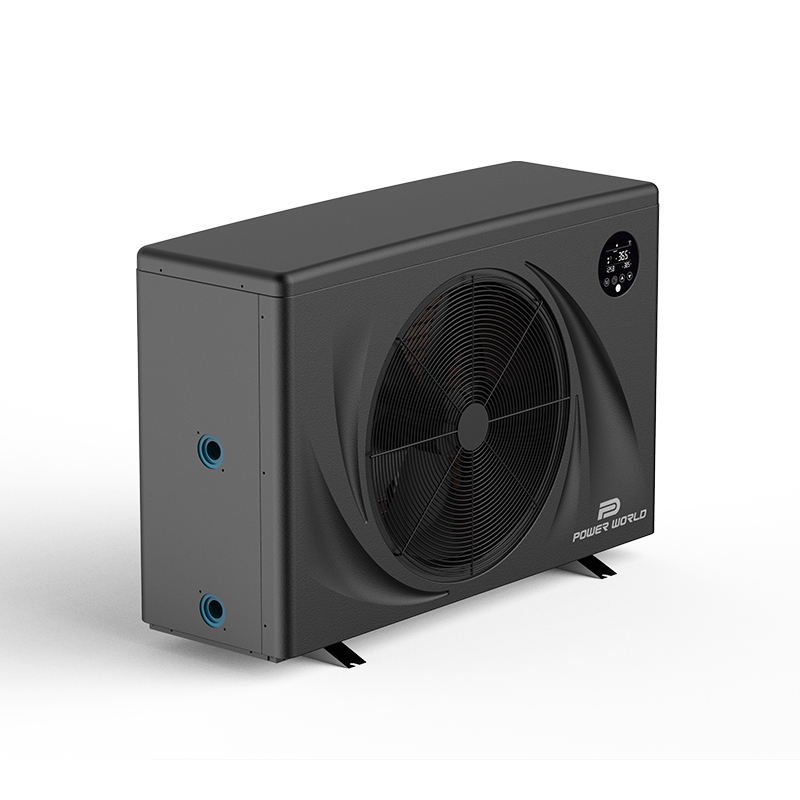

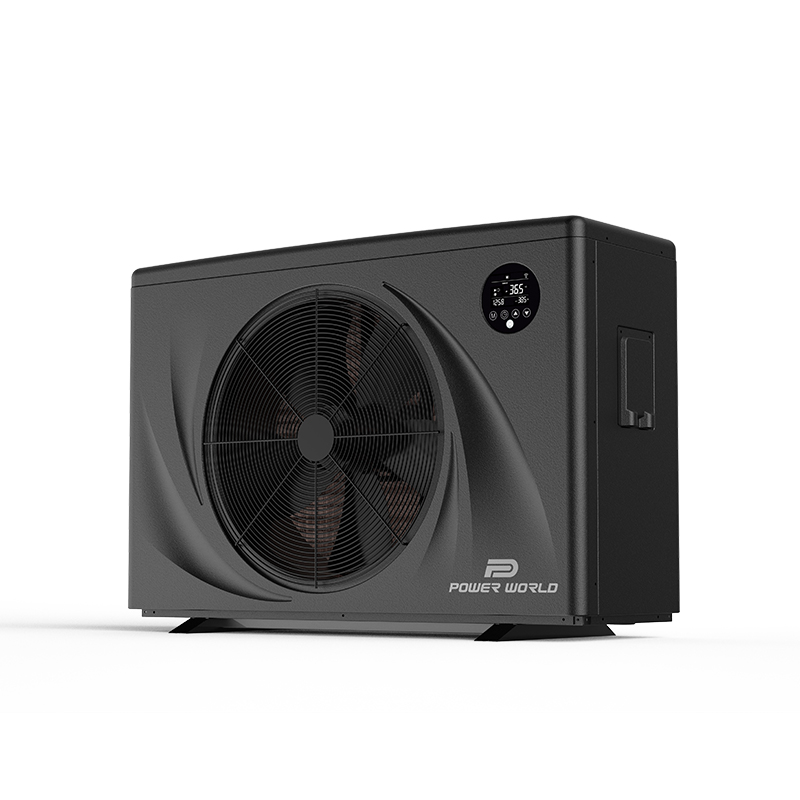

/New/ Full Inverter Pool Heat Pump

This series is newly designed and developed for customers in coastal countries or
regions on the basis of the Quiet series in 2022, two new appearances, it avoids any
corrosion in the harsh working conditions and is suitable for swimming pools from
15m³ to 100m³.

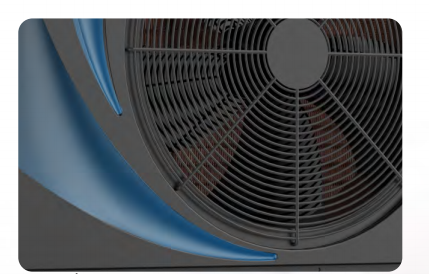

Unique 3D wind blade shape

Anti-corrosion plastic casing

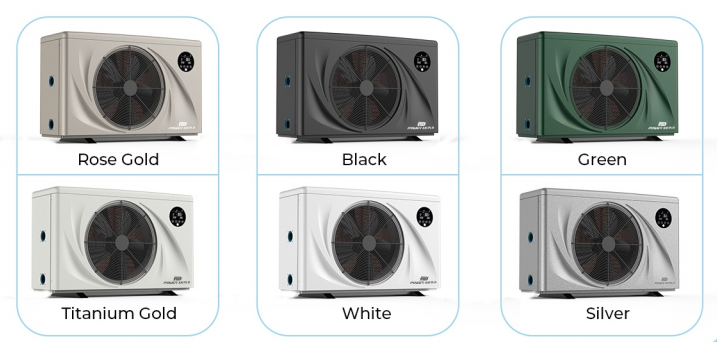

ABS CasingLow-temperature impact resistance is also better.·It is featured by good gloss,hardness,toughness,and rigidity.·It has a better dyeing performance,so we have 6 colors foryou to choose from.

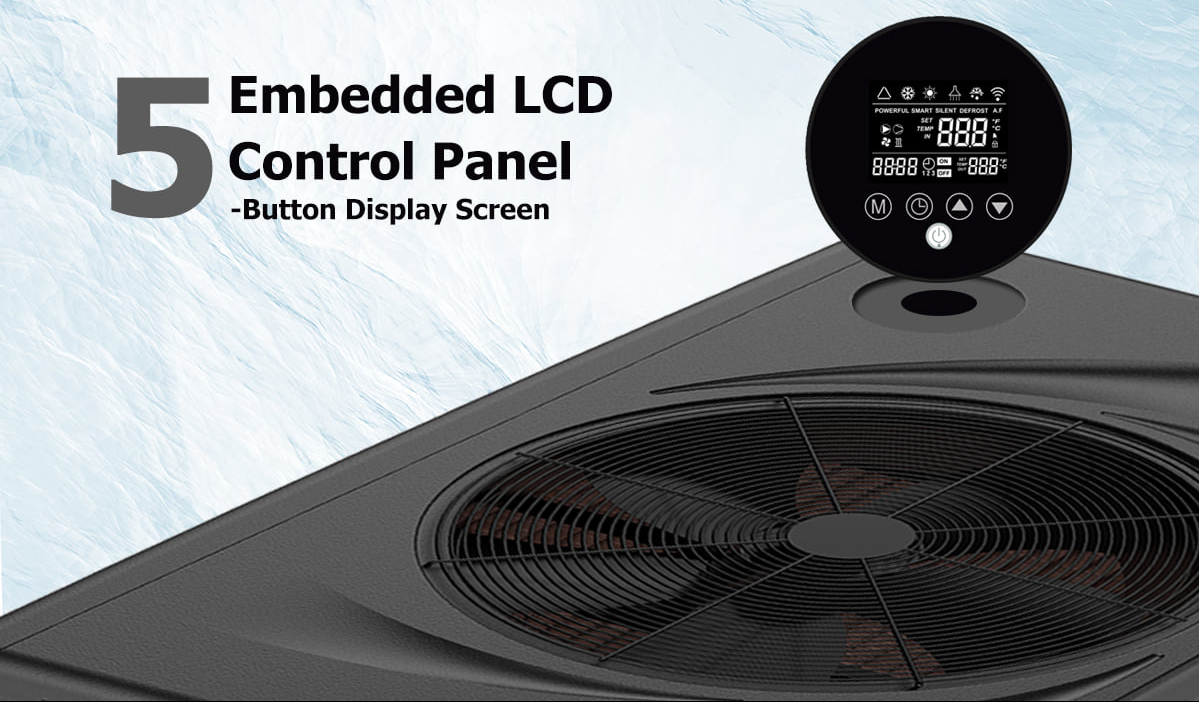

Embedded Control Panel

The new control panel adopts the newly designed embedded 5-button display screen in 2021 to ensure the integration ofthe unit. The screen can be easily touched (partially touched).The control panel has a built-in WIFl function,which meansthat with the App remote control function,you can adjustyour parameters anytime and anywhere.

COP as High as 15

COP is up to 15. 0 at Air 27℃/Water 26℃/Humidity 80%.The average COP is 11. 0 during the swimming season.·Operating at air-7°C-Maximize your pool season.

ULTRA SILENCE

The space where the compressor is located iswrapped with silencing materials,and a fullyenclosed design is adopted to implement threenoise reduction measures of sound absorption,sound insulation,and buffering for the entireunit to ensure low-noise operation.

This series swimming pool heat pump is apply the ABS plastic materies,it can avoid any corrosion by the poor ambient condition especially for seaside application,and the full inverter technology is designed for fast heating/cooling of indoor and outdoor swimming pool 15m3 to 100m3.

Model	PW010-KZXYC-B	PW015-KZXYC-B	PW020-KZXYC-B	PW030-KZXYC-B	PW040-KZXYC-B	PW050-KZXYC-B	PW060-KZXYC-B	PW070-KZXYC-B	PW080-KZXYC-B
Advised pool volume (m3)	15~30	20~40	25~50	30~60	40~75	55~100	55~100	60~120	70~130
Operating air temperature (℃)	-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	7.50~1.92	9.50~2.10	11.00~2.50	14.00~3.15	17.00~3.75	20.00~4.00	24.00~4.80	28.0~5.6	32.5~6.5
Heating Capacity(Btu)	25500~6528	32300~7140	37400~8500	47600~10710	57800~13090	68000~13600	81600~16320	95500~19100	110900~22100
Consumed power (kW)	1.15~0.13	1.46~0.14	1.83~0.17	2.15~0.21	2.62~0.25	3.33~0.27	4.00~0.32	4.75~0.37	5.42~0.43
COP	6.5~14.8	6.5~15.0	6.0~14.7	6.5~15.0	6.5~15.0	6.0~14.8	6.0~15.0	6.0~15.0	6.0~15.0
COP at 50% capacity	10.50	11.00	11.00	10.50	11.00	11.00	11.00	11.00	11.00
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	5.80~1.42	7.2~1.50	8.5~1.65	10.7~2.40	13.0~2.65	15.6~2.85	18.7~3.42	21.8~4.36	25.4~5.07
Heating Capacity(Btu)	19720~4828	24480~5100	28900~5610	36380~8160	44200~9010	53040~9690	63580~11630	74380~14880	86665~17300
Consumed power (kW)	1.15~0.20	1.43~0.21	1.77~0.23	2.12~0.34	2.58~0.36	3.25~0.40	3.89~0.49	4.54~0.62	5.29~0.72
COP	5.0~7.1	5.0~7.2	4.8~7.2	5.0~7.1	5.0~7.4	4.8~7.0	4.8~7.0	4.8~7.0	4.8~7.0
COP at 50% capacity	6.50	6.50	6.50	6.50	6.50	6.50	6.50	6.50	6.50

Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	4.0	5.2	6.0	7.2	8.6	10.1	11.8	13.8	15.6
Sound pressure at 1m dB(A)	38~48	38~48	40~50	42~51	43~52	43~53	44~54	45~56	45~57
Sound pressure of 50% capacity at 1m dB(A)	40	40	41	43	44	44	45	48	49
Sound pressure at 10m dB(A)	18~25	18~25	19~26	22~27	23~30	24~31	25~32	26~34	26~35

Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	230V/1 Ph/50Hz/60HZ
Water Connection (mm)	Φ50
Rated input current at air 15℃（A）	5.1~0.9	6.3~0.9	7.8~1.0	9.3~1.5	11.3~1.6	14.3~1.8	17.8~2.3	20.8~2.8	24.2~3.3
Advised water flux (m³/h)	2~4	2~4	3~5	4~6	6~9	8~10	9~12	10~14	12~16
Water Pressure Drop (max) kPa	5	5	8	10	12	15	15	20	25
Net weight/Gross weight（kg)	62/70	62/70	64/72	70/80	81/91	81/91	93/103	110	115
Carton size（mm）	980402636				1107503760			1187503900

Package size（mm）（carton）	1024470744				1148571869
Package size（mm）（Polywood）	1071470771				1195571895
Loading quantity (20GP/40GP/40HQ)	72/144/144				34/54/72
Refrigerant consumption（g）	400g	440g	450g	550g	750g	800g	1200g
Refrigerant	R32
Compressor	Panasonic
Four-way valve	Sanhua
Expansion valve	Sanhua
Operating water temperature (℃) *heating	9 ~40
Operating water temperature (℃) *cooling	9 ~35

Model	PW010-KZXYC-B	PW015-KZXYC-B	PW020-KZXYC-B	PW030-KZXYC-B	PW040-KZXYC-B	PW050-KZXYC-B	PW060-KZXYC-B	PW070-KZXYC-B	PW080-KZXYC-B
Advised pool volume (m3)	15~30	20~40	25~50	30~60	40~75	55~100	55~100	60~120	70~130
Operating air temperature (℃)	-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	7.50~1.92	9.50~2.10	11.00~2.50	14.00~3.15	17.00~3.75	20.00~4.00	24.00~4.80	28.0~5.6	32.5~6.5
Heating Capacity(Btu)	25500~6528	32300~7140	37400~8500	47600~10710	57800~13090	68000~13600	81600~16320	95500~19100	110900~22100
Consumed power (kW)	1.15~0.13	1.46~0.14	1.83~0.17	2.15~0.21	2.62~0.25	3.33~0.27	4.00~0.32	4.75~0.37	5.42~0.43
COP	6.5~14.8	6.5~15.0	6.0~14.7	6.5~15.0	6.5~15.0	6.0~14.8	6.0~15.0	6.0~15.0	6.0~15.0
COP at 50% capacity	10.50	11.00	11.00	10.50	11.00	11.00	11.00	11.00	11.00
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	5.80~1.42	7.2~1.50	8.5~1.65	10.7~2.40	13.0~2.65	15.6~2.85	18.7~3.42	21.8~4.36	25.4~5.07
Heating Capacity(Btu)	19720~4828	24480~5100	28900~5610	36380~8160	44200~9010	53040~9690	63580~11630	74380~14880	86665~17300
Consumed power (kW)	1.15~0.20	1.43~0.21	1.77~0.23	2.12~0.34	2.58~0.36	3.25~0.40	3.89~0.49	4.54~0.62	5.29~0.72
COP	5.0~7.1	5.0~7.2	4.8~7.2	5.0~7.1	5.0~7.4	4.8~7.0	4.8~7.0	4.8~7.0	4.8~7.0
COP at 50% capacity	6.50	6.50	6.50	6.50	6.50	6.50	6.50	6.50	6.50

Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	4.0	5.2	6.0	7.2	8.6	10.1	11.8	13.8	15.6
Sound pressure at 1m dB(A)	38~48	38~48	40~50	42~51	43~52	43~53	44~54	45~56	45~57
Sound pressure of 50% capacity at 1m dB(A)	40	40	41	43	44	44	45	48	49
Sound pressure at 10m dB(A)	18~25	18~25	19~26	22~27	23~30	24~31	25~32	26~34	26~35

Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	230V/1 Ph/50Hz/60HZ
Water Connection (mm)	Φ50
Rated input current at air 15℃（A）	5.1~0.9	6.3~0.9	7.8~1.0	9.3~1.5	11.3~1.6	14.3~1.8	17.8~2.3	20.8~2.8	24.2~3.3
Advised water flux (m³/h)	2~4	2~4	3~5	4~6	6~9	8~10	9~12	10~14	12~16
Water Pressure Drop (max) kPa	5	5	8	10	12	15	15	20	25
Net weight/Gross weight（kg)	62/70	62/70	64/72	70/80	81/91	81/91	93/103	110	115
Carton size（mm）	980402636				1107503760			1187503900

Package size（mm）（carton）	1024470744				1148571869
Package size（mm）（Polywood）	1071470771				1195571895
Loading quantity (20GP/40GP/40HQ)	72/144/144				34/54/72
Refrigerant consumption（g）	400g	440g	450g	550g	750g	800g	1200g
Refrigerant	R32
Compressor	Panasonic
Four-way valve	Sanhua
Expansion valve	Sanhua
Operating water temperature (℃) *heating	9 ~40
Operating water temperature (℃) *cooling	9 ~35
