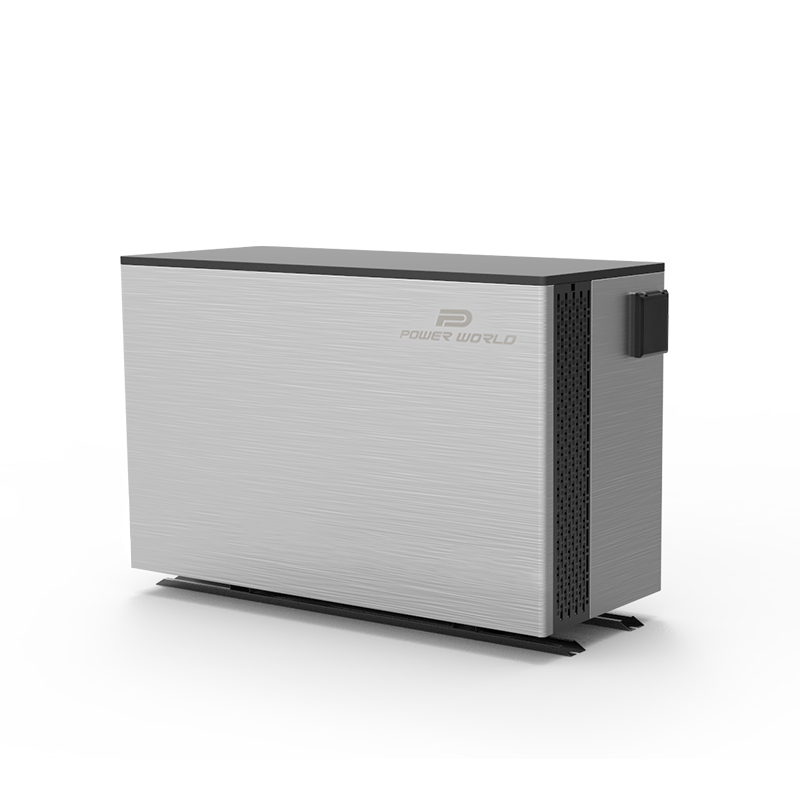

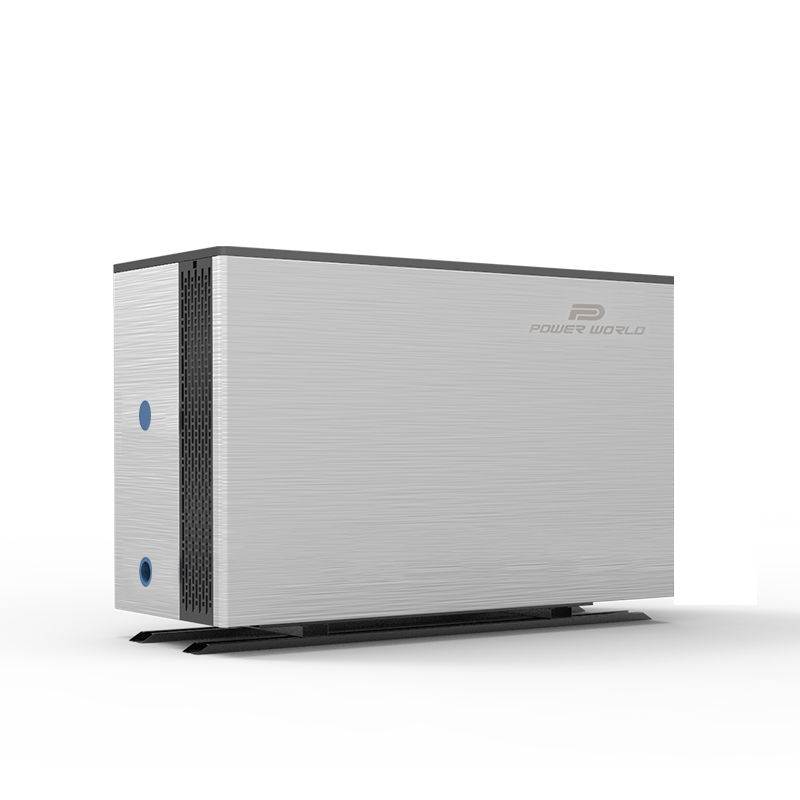

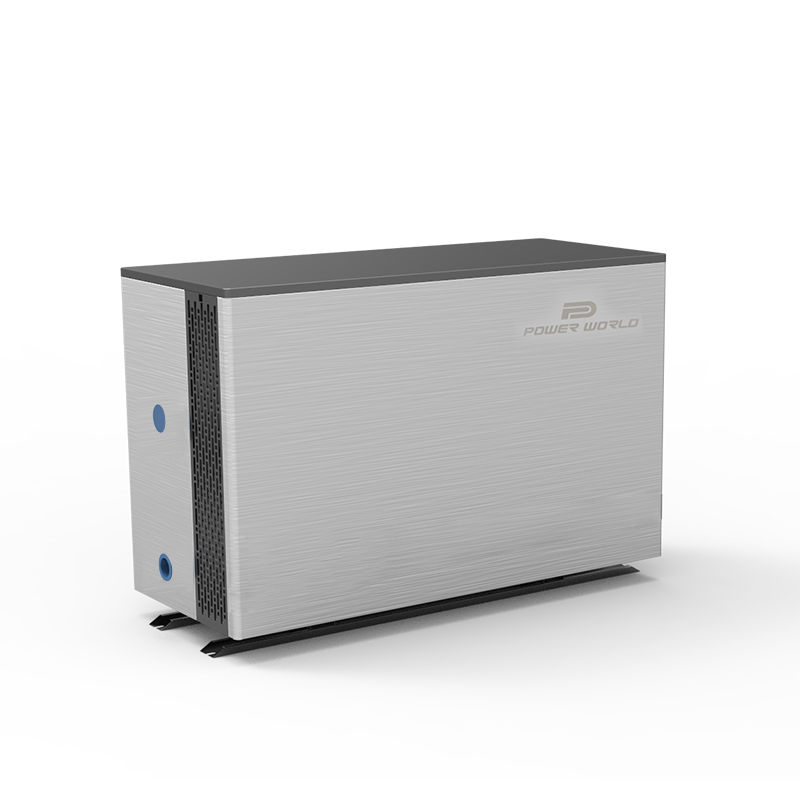

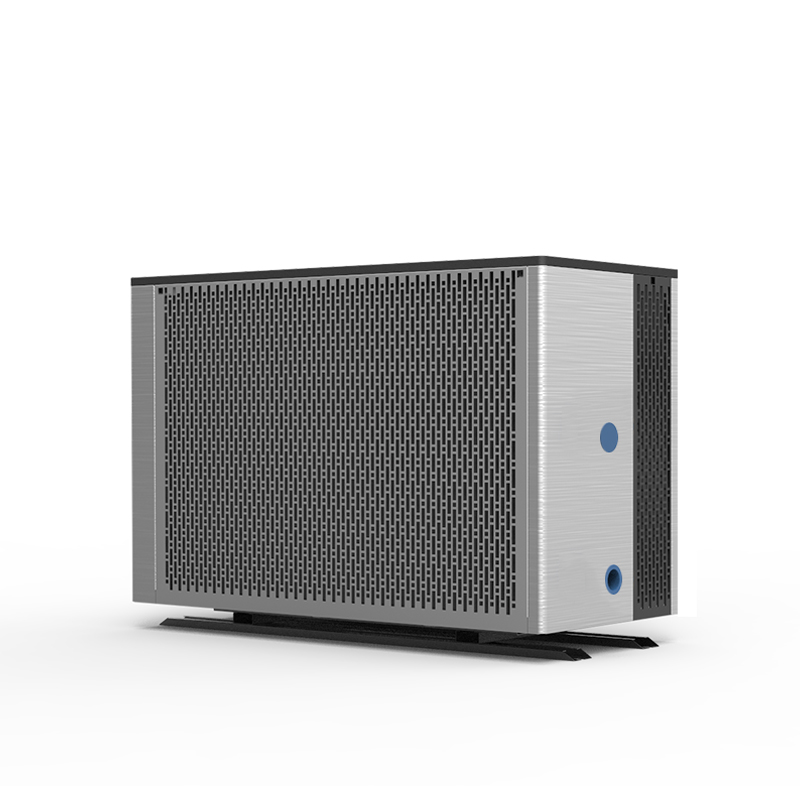

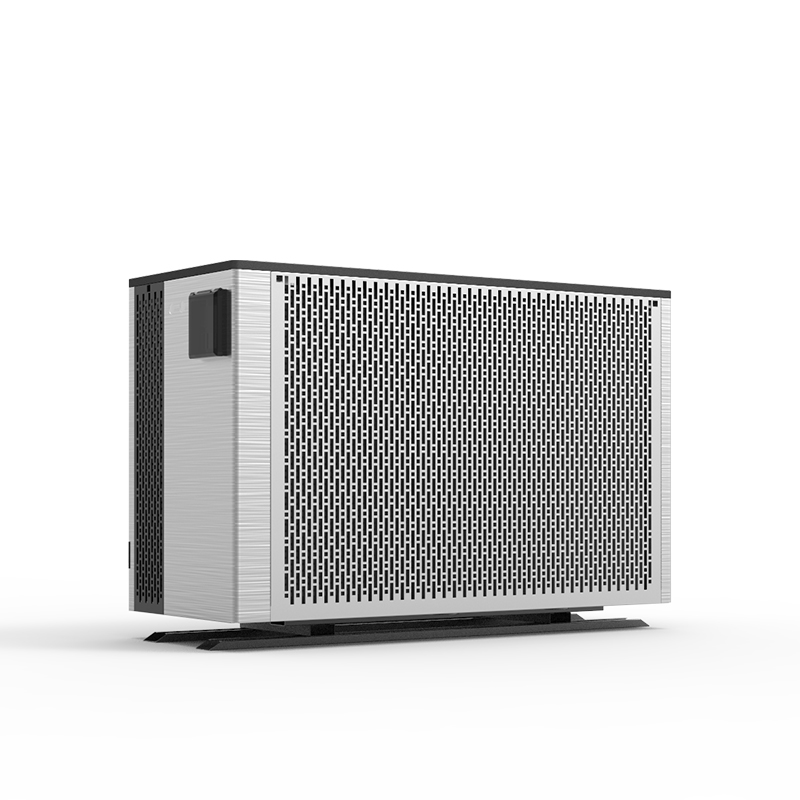

/New/ Full Inverter Pool Heat Pump

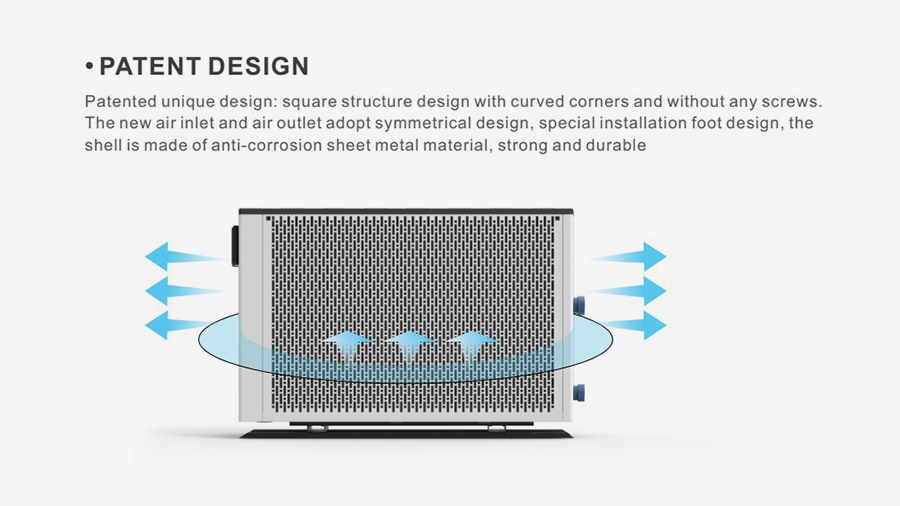

PATENT DESIGN

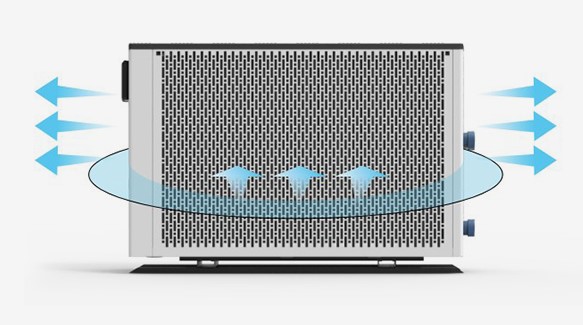

Patented unique design: square structure design with curved corners and without any screws. The new air inlet and air outlet adopt symmetrical design, special installation foot design, the shell is made of anti-corrosion sheet metal material, strong and durable.

swimming pool inverter heat pump

SUPER SILENCE

Thanks to patented silent-design, it makes a quieter swimming environment and friendly neighborhood for you.

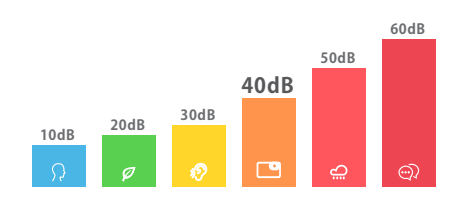

The sound level is only 40dB.

swimming pool inverter heat pump

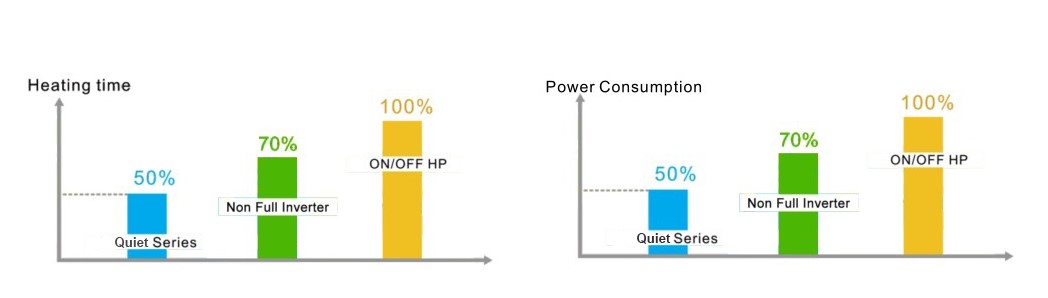

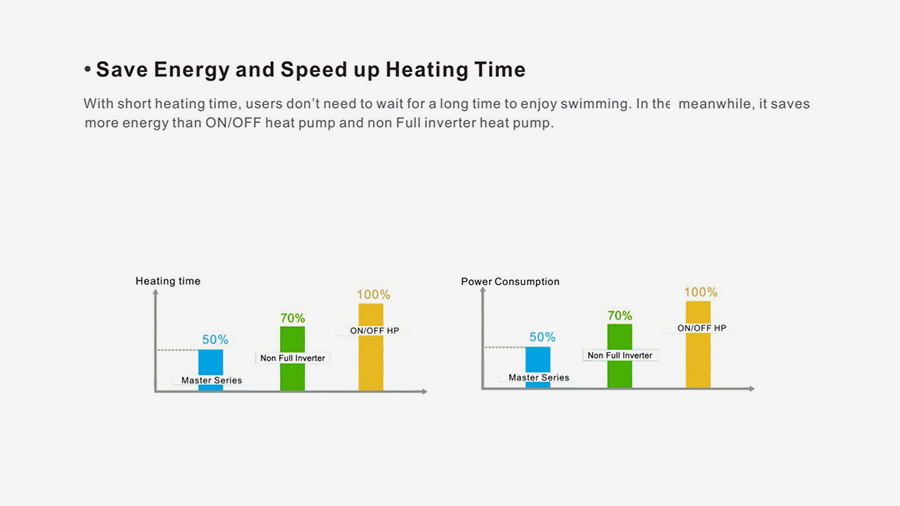

Save Energy and Speed up Heating Time
With short heating time, users don’t need to wait for a long time to enjoy swimming. In the meanwhile, it saves more energy than ON/OFF heat pump and non Full inverter heat pump.

Model	PW010-KZXYC-B	PW015-KZXYC-B	PW020-KZXYC-B	PW030-KZXYC-B	PW040-KZXYC-B	PW050-KZXYC-B
Advised pool volume (m3)	15~30	20~40	25~50	30~60	40~75	55~100
Operating air temperature (℃)	-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	7.50~1.92	9.50~2.10	11.00~2.50	14.00~3.15	17.00~3.75	20.00~4.00
Heating Capacity(Btu)	25500~6528	32300~7140	37400~8500	47600~10710	57800~13090	68000~13600
Consumed power (kW)	1.15~0.13	1.46~0.14	1.83~0.17	2.15~0.21	2.62~0.25	3.33~0.27
COP	6.5~14.8	6.5~15.0	6.0~14.7	6.5~15.0	6.5~15.0	6.0~14.8
COP at 50% capacity	10.50	11.00	11.00	10.50	11.00	11.00
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	5.80~1.42	7.2~1.50	8.5~1.65	10.7~2.40	13.0~2.65	15.6~2.85
Heating Capacity(Btu)	19720~4828	24480~5100	28900~5610	36380~8160	44200~9010	53040~9690
Consumed power (kW)	1.15~0.20	1.43~0.21	1.77~0.23	2.12~0.34	2.58~0.36	3.25~0.40
COP	5.0~7.1	5.0~7.2	4.8~7.2	5.0~7.1	5.0~7.4	4.8~7.0
COP at 50% capacity	6.50	6.50	6.50	6.50	6.50	6.50
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	4.0	5.2	6.0	7.2	8.6	10.1
Sound pressure at 1m dB(A)	38~48	38~48	40~50	42~51	43~52	43~53
Sound pressure of 50% capacity at 1m dB(A)	40	40	41	43	44	44
Sound pressure at 10m dB(A)	18~25	18~25	19~26	22~27	23~30	24~31
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	230V/1 Ph/50Hz
Water Connection (mm)	Φ50
Rated input current at air 15℃（A）	5.1~0.9	6.3~0.9	7.8~1.0	9.3~1.5	11.3~1.6	14.3~1.8
Advised water flux (m³/h)	2~4	2~4	3~5	4~6	6~9	8~10
Water Pressure Drop (max) kPa	2	3	4	5	5	6
Net weight/Gross weight（kg)	62/70	62/70	64/72	77/87	81/91	81/91
Carton size（mm）	980402636			1107503760
Refrigerant consumption（g）	350g	440g	450g	550g	750g	800g

Model	PW010-KZXYC-B	PW015-KZXYC-B	PW020-KZXYC-B	PW030-KZXYC-B	PW040-KZXYC-B	PW050-KZXYC-B
Advised pool volume (m3)	15~30	20~40	25~50	30~60	40~75	55~100
Operating air temperature (℃)	-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	7.50~1.92	9.50~2.10	11.00~2.50	14.00~3.15	17.00~3.75	20.00~4.00
Heating Capacity(Btu)	25500~6528	32300~7140	37400~8500	47600~10710	57800~13090	68000~13600
Consumed power (kW)	1.15~0.13	1.46~0.14	1.83~0.17	2.15~0.21	2.62~0.25	3.33~0.27
COP	6.5~14.8	6.5~15.0	6.0~14.7	6.5~15.0	6.5~15.0	6.0~14.8
COP at 50% capacity	10.50	11.00	11.00	10.50	11.00	11.00
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	5.80~1.42	7.2~1.50	8.5~1.65	10.7~2.40	13.0~2.65	15.6~2.85
Heating Capacity(Btu)	19720~4828	24480~5100	28900~5610	36380~8160	44200~9010	53040~9690
Consumed power (kW)	1.15~0.20	1.43~0.21	1.77~0.23	2.12~0.34	2.58~0.36	3.25~0.40
COP	5.0~7.1	5.0~7.2	4.8~7.2	5.0~7.1	5.0~7.4	4.8~7.0
COP at 50% capacity	6.50	6.50	6.50	6.50	6.50	6.50
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	4.0	5.2	6.0	7.2	8.6	10.1
Sound pressure at 1m dB(A)	38~48	38~48	40~50	42~51	43~52	43~53
Sound pressure of 50% capacity at 1m dB(A)	40	40	41	43	44	44
Sound pressure at 10m dB(A)	18~25	18~25	19~26	22~27	23~30	24~31
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	230V/1 Ph/50Hz
Water Connection (mm)	Φ50
Rated input current at air 15℃（A）	5.1~0.9	6.3~0.9	7.8~1.0	9.3~1.5	11.3~1.6	14.3~1.8
Advised water flux (m³/h)	2~4	2~4	3~5	4~6	6~9	8~10
Water Pressure Drop (max) kPa	2	3	4	5	5	6
Net weight/Gross weight（kg)	62/70	62/70	64/72	77/87	81/91	81/91
Carton size（mm）	980402636			1107503760
Refrigerant consumption（g）	350g	440g	450g	550g	750g	800g
