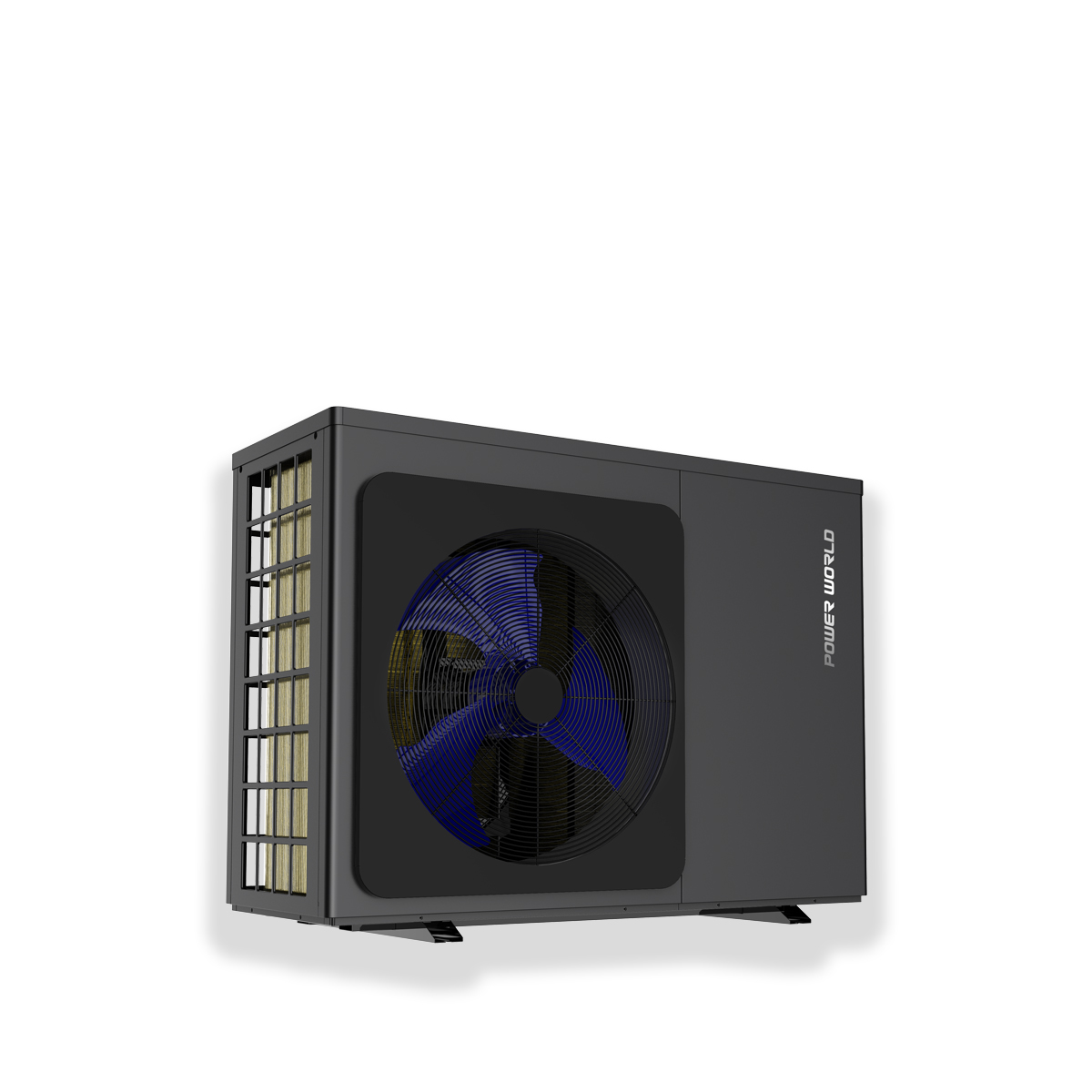

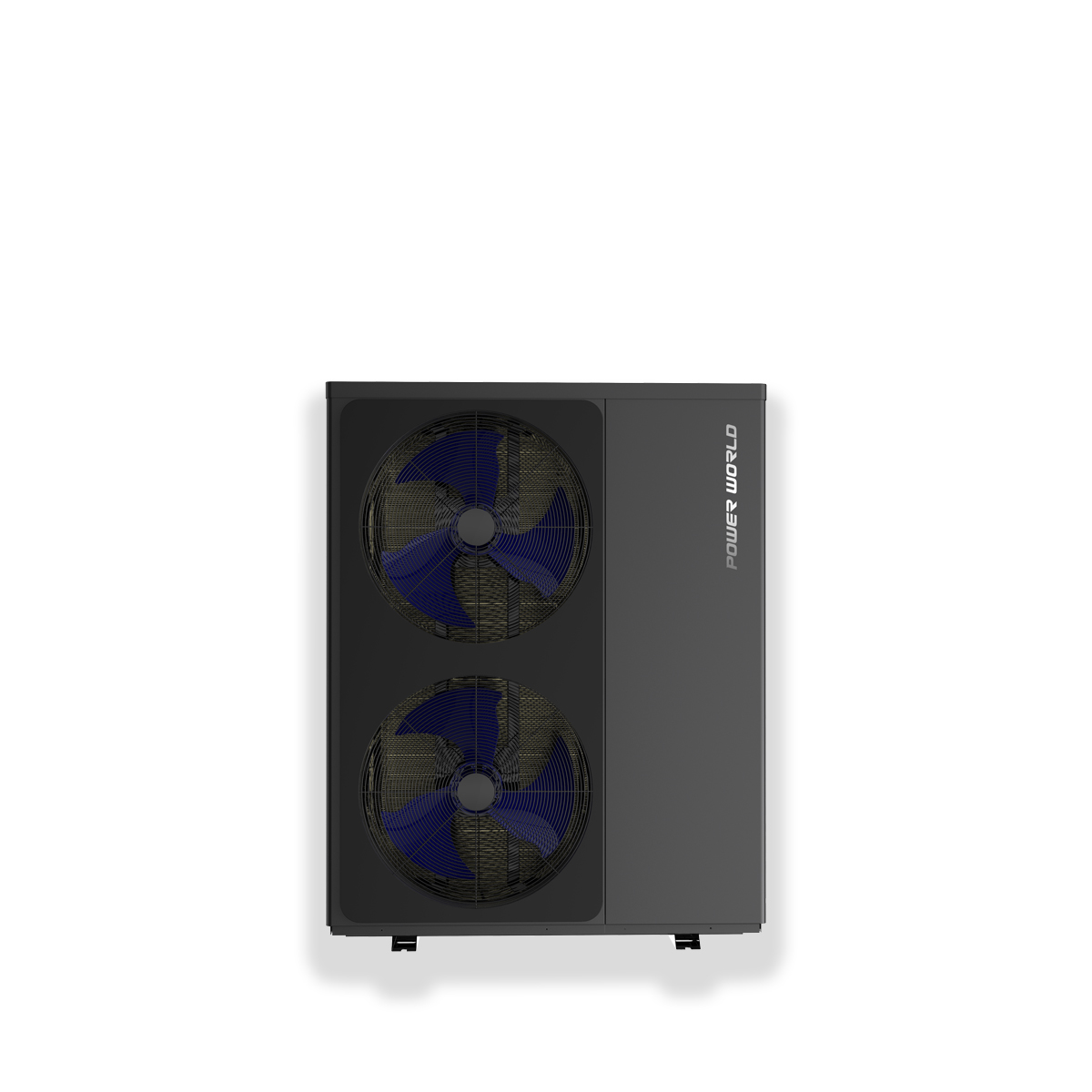

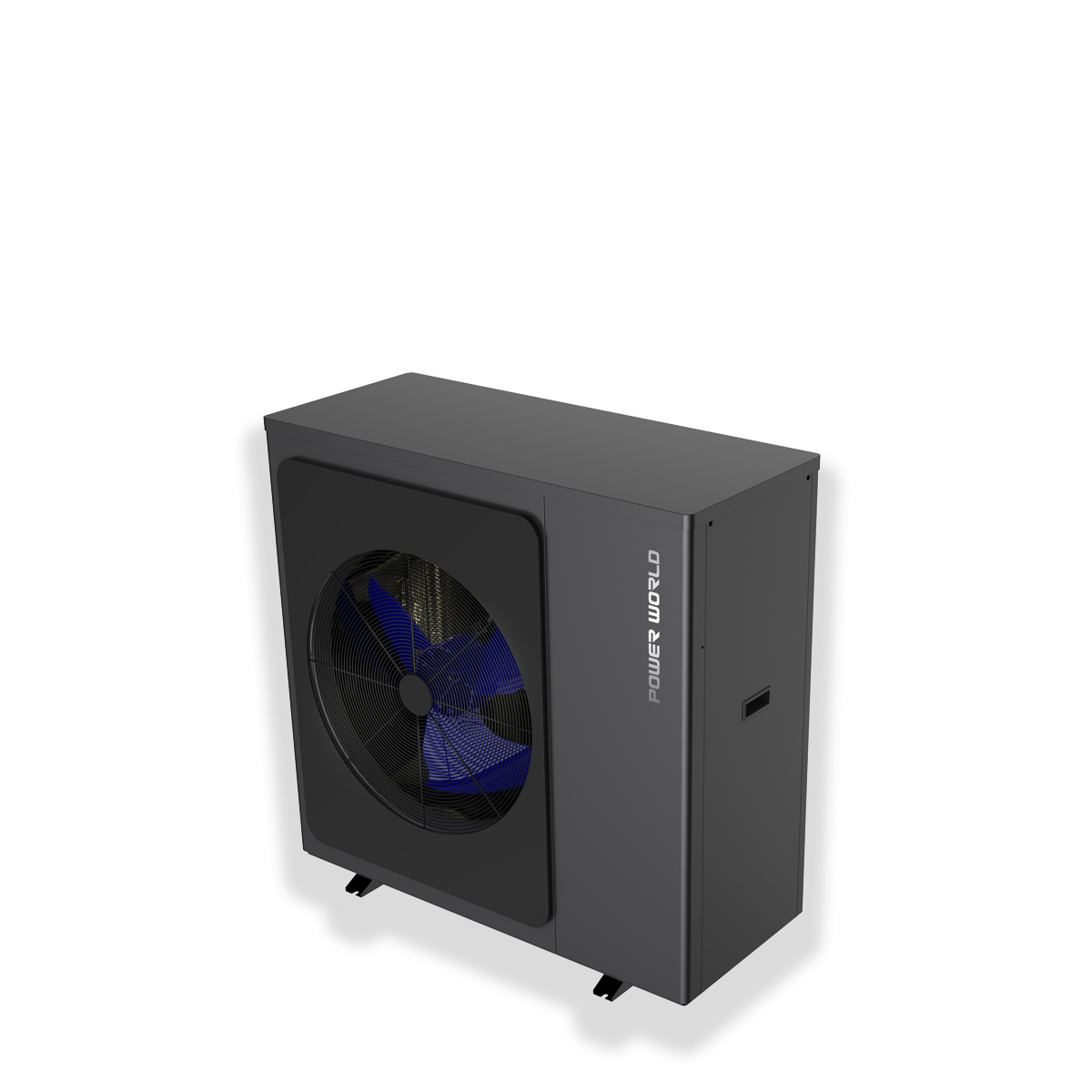

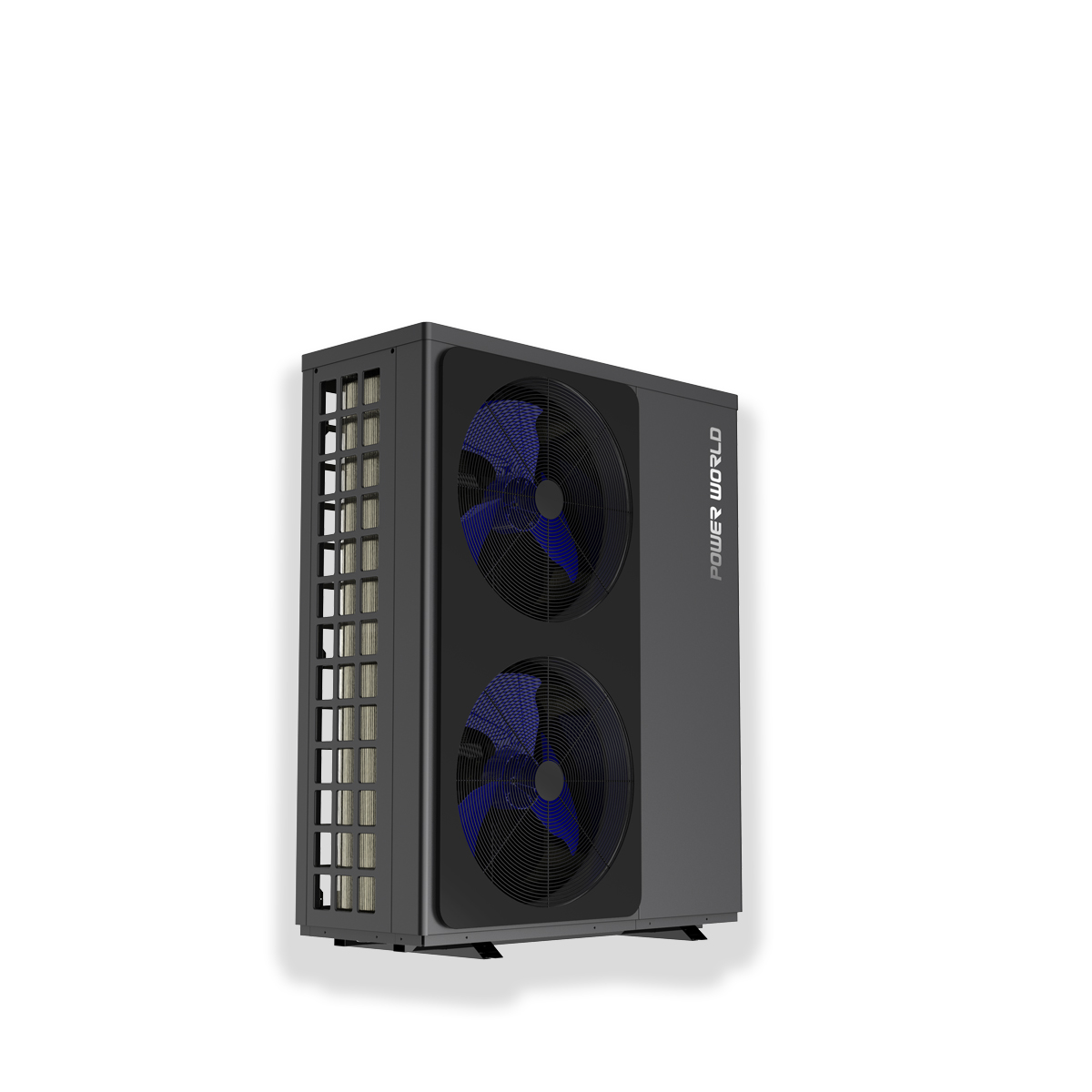

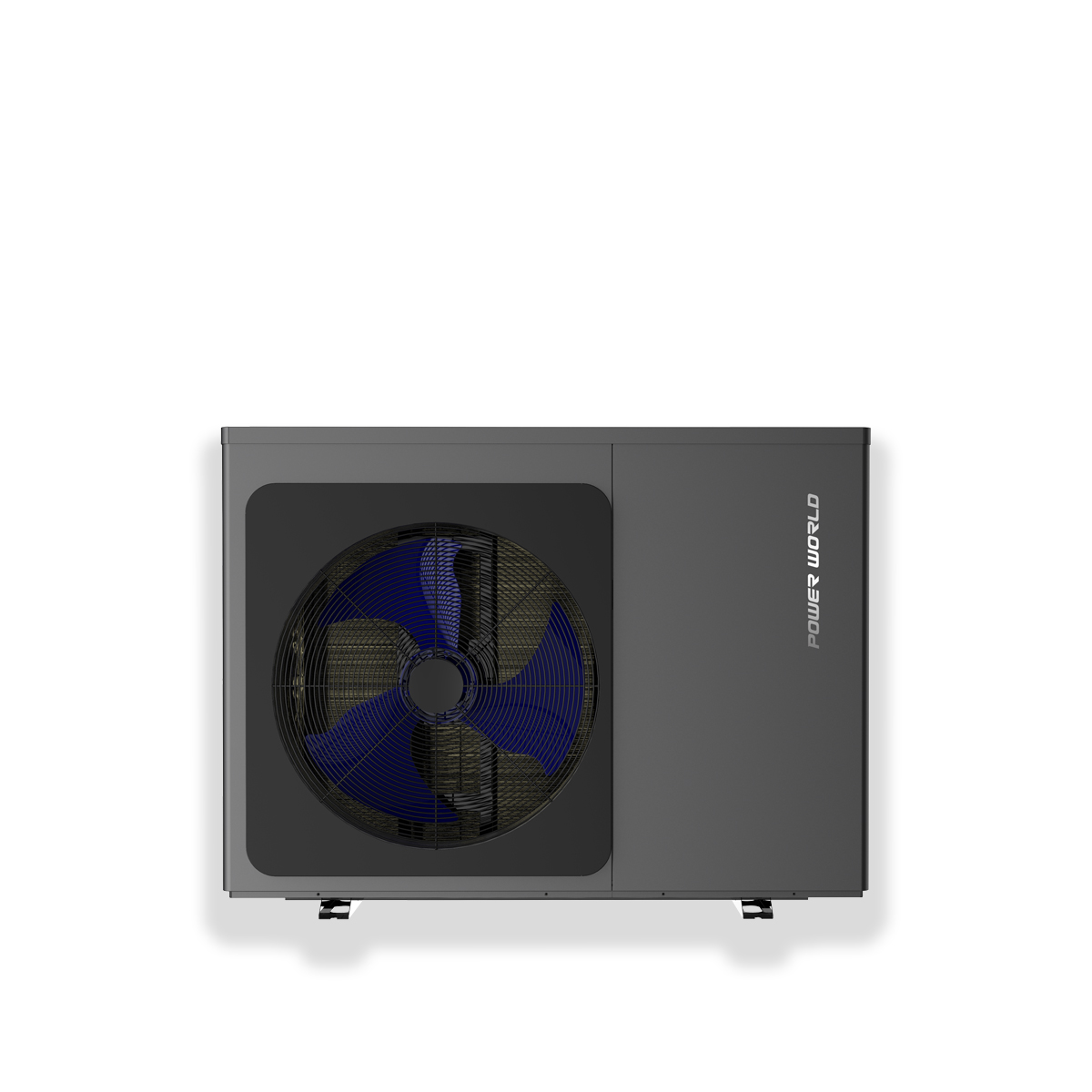

R290 Full Inverter Heat Pump

LOW GWP R290 REFRIGERANT

To reduce carbon emissions to the environment and curb global warming, Power World has developed an R290 Full DC Inverter Heat Pump. Compared to R410A refrigerant with a GWP of 2100 and R32 with a GWP of 675, R290 has a GWP of less than 20 and is recognized by the industry as the most development potential and eco-friendly refrigerant.

MULTIFUNCTIONAL HEAT PUMP

The perfect performance of the R290 FULL DC INVERTER Heat Pump can meet the user's needs of house heating, cooling and domestic hot water throughout the year ( by 3-way valve):

*Domestic Hot Water Only

*Cooling Only*Heating Only

*Heating+ DHW (Priority)

*Cooling+ DHW (Priority)

STABLE AND RELIABLE OPERATE AT -25℃

Under low ambient temperature, the performance, heating ability and operational stability of normal heat pumps will be limited. Power World's R290 FULL DC INVERTER heat pump can operate stably and efficiently in extremely cold regions of -25℃ without technology, maintaining a high COP and outputting 70℃ hot water to ensure the heating and cooling of the house need.

Reliable operation in extreme temperatures of -25°C, Powerful heating can output 70°C hot water

FULL INVERTER TECHNOLOGY

The Full DC inverter technology makes the unit can intelligently adjust the operating frequency and control the water temperature to keep the room at a constant-temps. It can save up to 50% energy electricity compared to ON-OFF units and up to 75% energy compared to traditional boiler electric heat pumps.

DC Inverter HIGHLY Compressor, Stepless DC Inverter Fan Motor, DC Inverter Water Circulation Water Pump

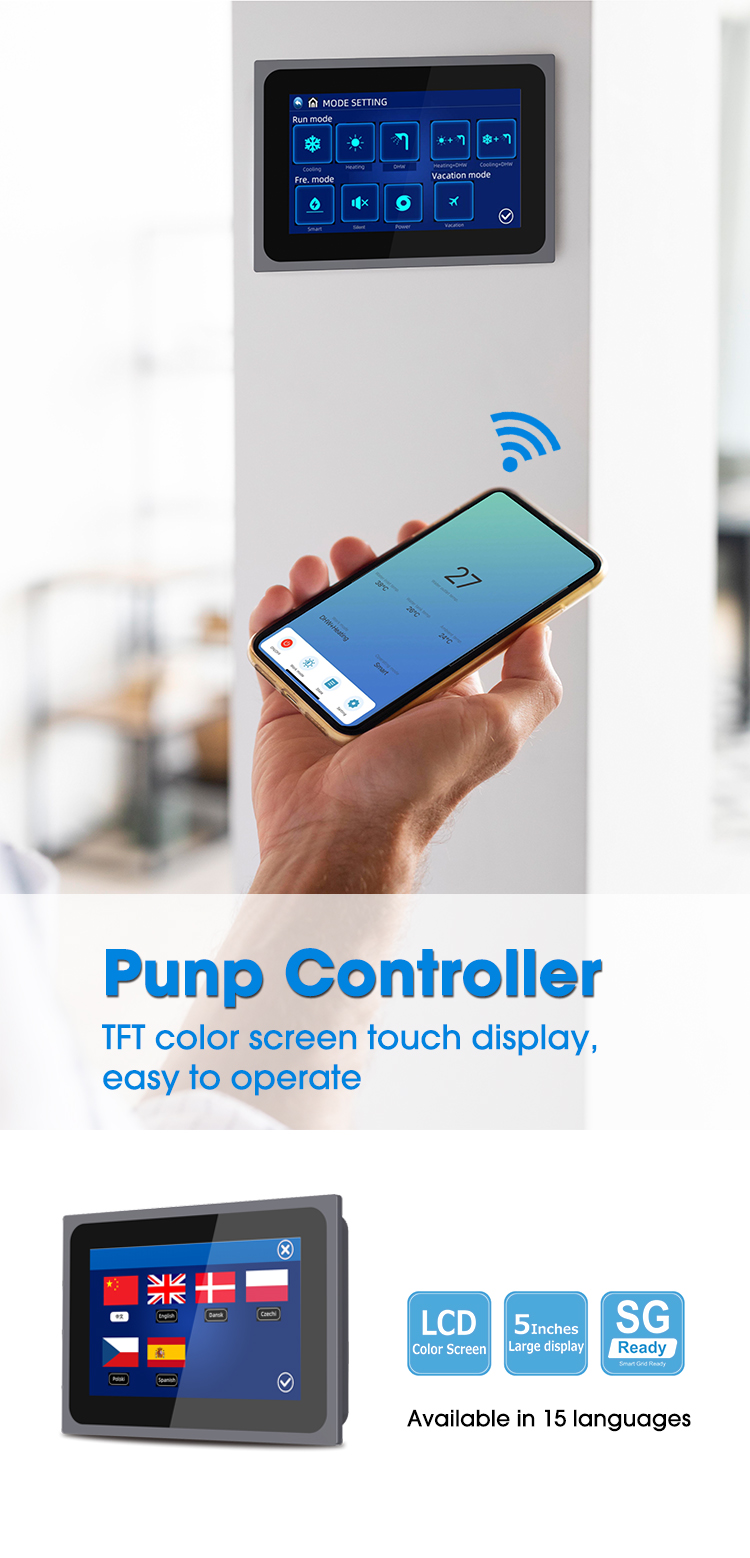

LCD CONTROL PANEL AND WI-FI APP
5-Inches large LCD touch screen control panel and “Smart Life” Wi-Fi App support local language +English options. This user-friendly design reduces users' foreign language dyslexia, and also facilitates distributors to expand their market locally.

FOUR OPERATING MODES SAVE YOUR ENERGY
Based on the different needs of users, Power World has developed 4 operating modes: Powerful Mode, Smart Mode, Silent Mode, Vacation Mode. Users can choose modes with different operating frequencies according to actual needs, which help users save a lot of electricity bills.

HIGHER EFFICIENCY A+++

R290 FULL DC INVERTER Heat Pump has passed the ERP A+++ energy class test of TUV. Its energy efficiency grade can not only reach A+++ at 35°C, but also A++ at 55°C. In addition, its SCOP can be as high as 4.86, which ensures the perfect performance and ultra-high energy efficiency of the unit.

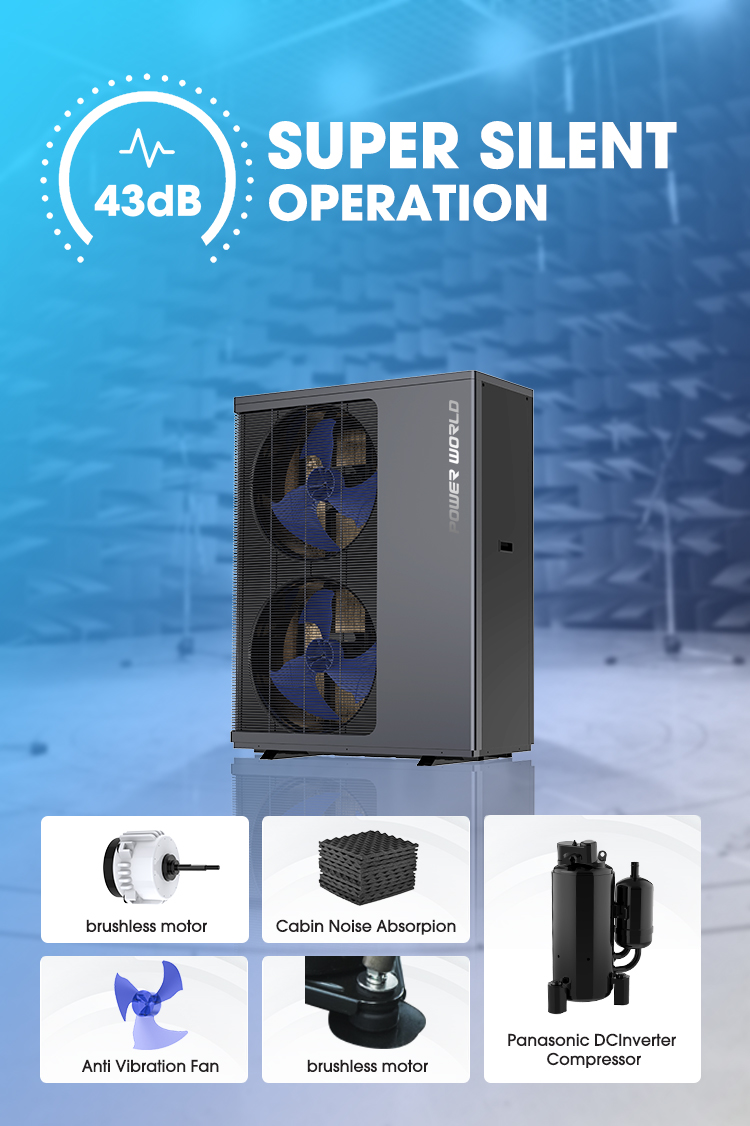

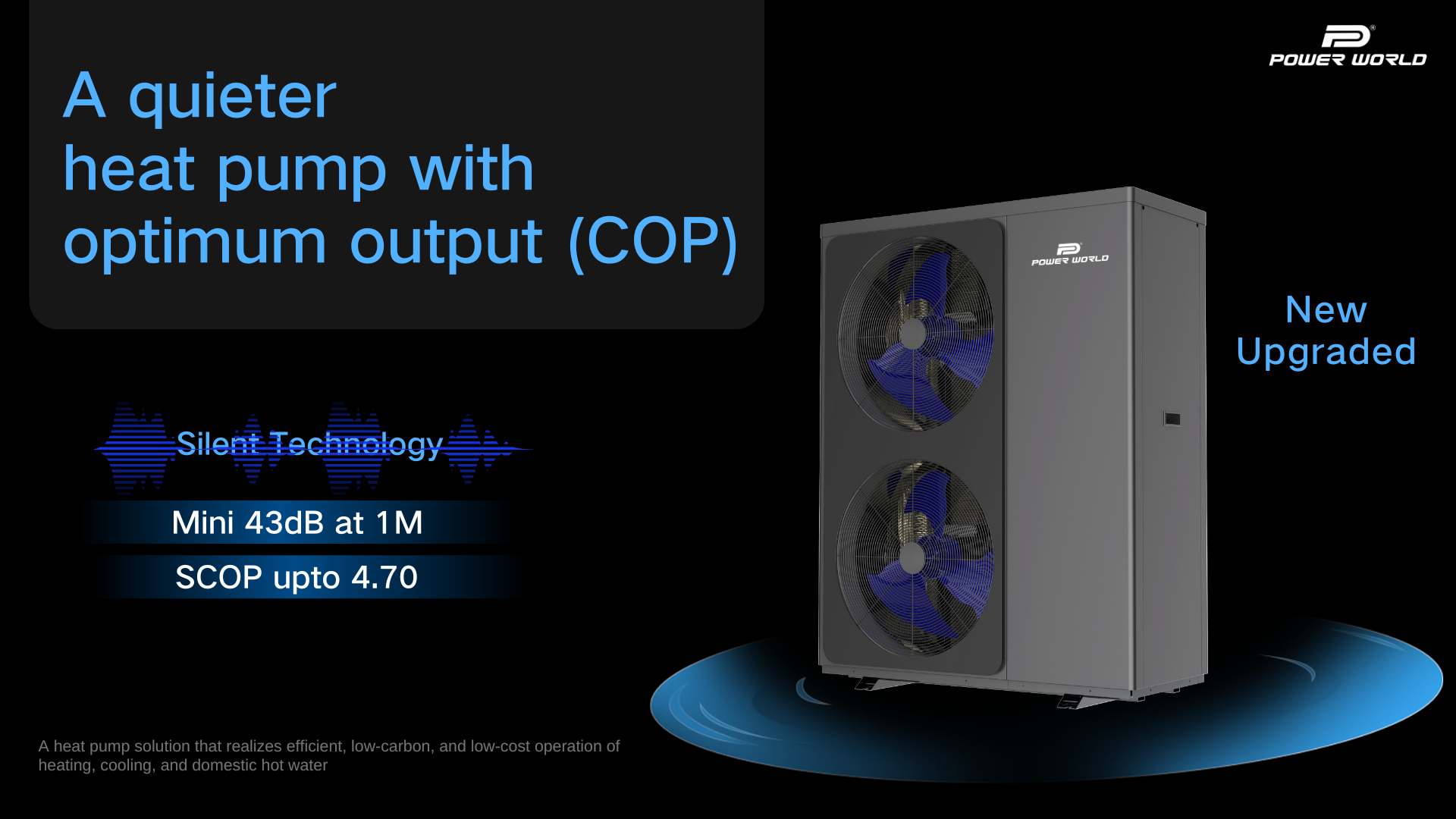

SUPER SILENT OPERATION

The unit uses a special three-layer sound insulation cotton, combined with Power World's multiple noise reduction technology, so that the unit can run smoothly and quietly without mechanical noise.

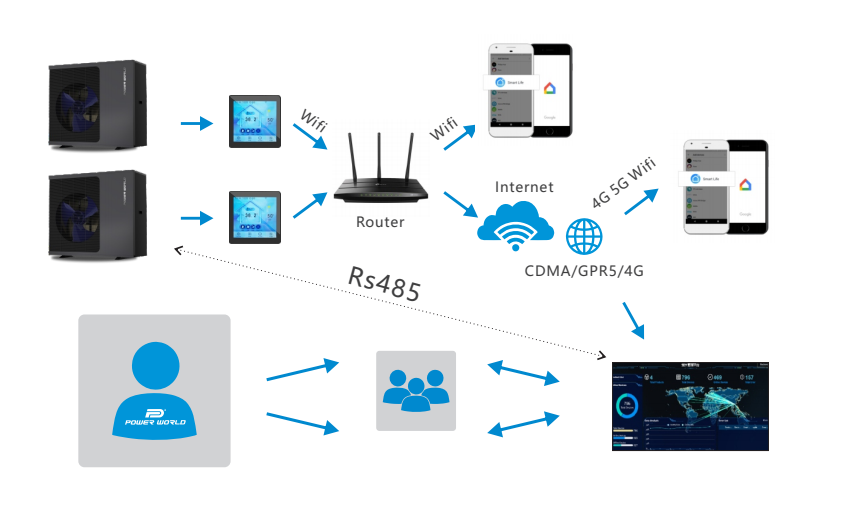

IoT  Platfrom
Power World's IoT cloud management platform can be connected with Wi-Fi or DUT to realize remote monitoring of data. This platform can record all the operating parameters of the units from Power World. If the unit has an error, the error report will be synchronized to the local service provider or PW's background, and then we will quickly provide users with the best solution, which greatly saves the after-sales communication cost and time costs of users, dealers, and manufacturers.

Model		PW030-DKZLRS-E/S	PW040-DKZLRS-E/S	PW050-DKZLRS-E/S	PW040-DKZLRS-E	PW050-DKZLRS-E	PW060-DKZLRS-E
Heating Condition - Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):30/35℃
Heating Capacity Range (kW)		3.3~8.3	4.5~11.4	5.9~14.8	4.5~11.4	5.9~14.8	8.8~22.0
Heating Power Input Range(kW)		0.64~2.18	0.85~2.95	1.13~3.83	0.85~2.95	1.13~3.83	1.68~5.77
COP Range		3.81~5.17	3.86~5.29	3.86~5.22	3.86~5.29	3.86~5.22	3.81~5.24
DHW Condition-Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):15/55℃
Heating Capacity Range (kW)		3.7~7.4	5.2~10.2	6.6~13.2	5.2~10.2	6.6~13.2	7.8~17.6
Heating Power Input Range(kW)		0.79~2.10	1.10~2.87	1.41~3.73	1.10~2.87	1.41~3.73	1.67~5.01
COP Range		3.52~4.69	3.55~4.71	3.54~4.67	3.55~4.71	3.54~4.67	3.51~4.66
Heated water output (L/H)		159	219	283	219	283	377
Cooling Condition - Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):12/7℃
Cooling Capacity Range (kW)		2.4~5.8	3.3~8.2	4.3~10.8	3.3~8.2	4.3~10.8	6.2~15.3
Cooling Power Input Range(kW)		0.79~2.19	1.08~3.07	1.39~3.99	1.08~3.07	1.39~3.99	1.99~5.60
EER Range		2.65~3.04	2.67~3.06	2.71~3.10	2.67~3.06	2.71~3.10	2.73~3.12
Space Heating (According to EN14825:2022) Average Climate Water Outlet 35°C	Rated heat output (kW)	5.82	7.89	9.95	7.61	10.27	14.05
	Seasonal Space Heating Energy Efficiency (ηs)	182.7%	181.0%	182.9%	181.6%	180.8%	184.6%
	Seasonal Space Heating Energy Efficiency (SCOP)	4.64	4.60	4.65	4.62	4.60	4.69
	ErP Level	A+++	A+++	A+++	A+++	A+++	A+++
	Sound pressure level (dB(A)) at 1 meter	44	43	45	43	44	45
	Sound power level (dB(A))	58	57	59	58	59	60
Space Heating (According to EN14825:2022) Average Climate Water Outlet 55°C	Rated heat output (kW)	5.59	8.70	9.23	8.10	12.17	13.47
	Seasonal Space Heating Energy Efficiency (ηs)	136.0%	137.0%	131.9%	135.8%	134.7%	138.9%
	Seasonal Space Heating Energy Efficiency (SCOP)	3.48	3.50	3.37	3.47	3.44	3.55
	ErP Level	A++	A++	A++	A++	A++	A++
	Sound pressure level (dB(A)) at 1 meter	44	47	46	42	45	46
	Sound power level (dB(A))	58	61	60	57	59	62
Power supply		230V/1Ph/50Hz/60Hz			380V/3Ph/50-60Hz
Max. power input(kW)		3.1	4.1	5.2	4.1	5.2	7.6
Max. current (A)		14.2	18.8	23.8	7.8	9.8	14.3
Fuse or circuit breaker (A)		20	25	32	16	16	20
Wire diameter mm²		2.5mm²	4mm²	6mm²	2.5mm²	2.5mm²	4mm²
Diameter of pipe (mm)		DN25	DN25	DN25	DN25	DN25	DN25
Water Flow(m3/h)		1.43	1.96	2.55	1.96	2.55	3.78
Water Pressure Drop (max) kPa		30	35	40	35	40	45
Net Weight (kg)		112	120	138	120	138	170
Body size(WDH) (mm)		1080×460×820	1080×460×960	1080×480×1060	1080×460×960	1080×480×1060	1080×480×1372
Packing size(WDH)(carton)		1100×490×960	1100×490×1110	1100×490×1210	1100×490×1110	1100×490×1210	1100×490×1510
Packing size(WDH)(Polywood)		1140×520×974	1140×520×1120	1140×520×1220	1140×520×1120	1140×520×1220	1140×520×1520
Loading quantity (carton)		48/96	48/96	24/96	48/96	24/96	24/48
Loading quantity (Polywood)		44/88	44/88	22/88	44/88	22/88	22/44
IP Grade (Level of protection)		IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Anti-electric shock Rate		I	I	I	I	I	I
Refrigerant		R290/1.0kg	R290/0.95kg	R290/1.45kg	R290/1.1kg	R290/1.45kg	R290/1.4kg
Compressor	Brand	HIGHLY	HIGHLY	HIGHLY	HIGHLY	HIGHLY	HIGHLY
Compressor
Water pump	Brand	SHIMGE	SHIMGE	SHIMGE	SHIMGE	SHIMGE	SHIMGE
Water pump
Operation Ambient Temp. (℃)		-25~43℃
Operating water temperature (℃)		20~65℃(DHW)
Operating water temperature (℃)		20~70℃(Heating)
Operating water temperature (℃)		7~35℃(Cooling)

Model		PW030-DKZLRS-E/S	PW040-DKZLRS-E/S	PW050-DKZLRS-E/S	PW040-DKZLRS-E	PW050-DKZLRS-E	PW060-DKZLRS-E
Heating Condition - Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):30/35℃
Heating Capacity Range (kW)		3.3~8.3	4.5~11.4	5.9~14.8	4.5~11.4	5.9~14.8	8.8~22.0
Heating Power Input Range(kW)		0.64~2.18	0.85~2.95	1.13~3.83	0.85~2.95	1.13~3.83	1.68~5.77
COP Range		3.81~5.17	3.86~5.29	3.86~5.22	3.86~5.29	3.86~5.22	3.81~5.24
DHW Condition-Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):15/55℃
Heating Capacity Range (kW)		3.7~7.4	5.2~10.2	6.6~13.2	5.2~10.2	6.6~13.2	7.8~17.6
Heating Power Input Range(kW)		0.79~2.10	1.10~2.87	1.41~3.73	1.10~2.87	1.41~3.73	1.67~5.01
COP Range		3.52~4.69	3.55~4.71	3.54~4.67	3.55~4.71	3.54~4.67	3.51~4.66
Heated water output (L/H)		159	219	283	219	283	377
Cooling Condition - Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):12/7℃
Cooling Capacity Range (kW)		2.4~5.8	3.3~8.2	4.3~10.8	3.3~8.2	4.3~10.8	6.2~15.3
Cooling Power Input Range(kW)		0.79~2.19	1.08~3.07	1.39~3.99	1.08~3.07	1.39~3.99	1.99~5.60
EER Range		2.65~3.04	2.67~3.06	2.71~3.10	2.67~3.06	2.71~3.10	2.73~3.12
Space Heating (According to EN14825:2022) Average Climate Water Outlet 35°C	Rated heat output (kW)	5.82	7.89	9.95	7.61	10.27	14.05
	Seasonal Space Heating Energy Efficiency (ηs)	182.7%	181.0%	182.9%	181.6%	180.8%	184.6%
	Seasonal Space Heating Energy Efficiency (SCOP)	4.64	4.60	4.65	4.62	4.60	4.69
	ErP Level	A+++	A+++	A+++	A+++	A+++	A+++
	Sound pressure level (dB(A)) at 1 meter	44	43	45	43	44	45
	Sound power level (dB(A))	58	57	59	58	59	60
Space Heating (According to EN14825:2022) Average Climate Water Outlet 55°C	Rated heat output (kW)	5.59	8.70	9.23	8.10	12.17	13.47
	Seasonal Space Heating Energy Efficiency (ηs)	136.0%	137.0%	131.9%	135.8%	134.7%	138.9%
	Seasonal Space Heating Energy Efficiency (SCOP)	3.48	3.50	3.37	3.47	3.44	3.55
	ErP Level	A++	A++	A++	A++	A++	A++
	Sound pressure level (dB(A)) at 1 meter	44	47	46	42	45	46
	Sound power level (dB(A))	58	61	60	57	59	62
Power supply		230V/1Ph/50Hz/60Hz			380V/3Ph/50-60Hz
Max. power input(kW)		3.1	4.1	5.2	4.1	5.2	7.6
Max. current (A)		14.2	18.8	23.8	7.8	9.8	14.3
Fuse or circuit breaker (A)		20	25	32	16	16	20
Wire diameter mm²		2.5mm²	4mm²	6mm²	2.5mm²	2.5mm²	4mm²
Diameter of pipe (mm)		DN25	DN25	DN25	DN25	DN25	DN25
Water Flow(m3/h)		1.43	1.96	2.55	1.96	2.55	3.78
Water Pressure Drop (max) kPa		30	35	40	35	40	45
Net Weight (kg)		112	120	138	120	138	170
Body size(WDH) (mm)		1080×460×820	1080×460×960	1080×480×1060	1080×460×960	1080×480×1060	1080×480×1372
Packing size(WDH)(carton)		1100×490×960	1100×490×1110	1100×490×1210	1100×490×1110	1100×490×1210	1100×490×1510
Packing size(WDH)(Polywood)		1140×520×974	1140×520×1120	1140×520×1220	1140×520×1120	1140×520×1220	1140×520×1520
Loading quantity (carton)		48/96	48/96	24/96	48/96	24/96	24/48
Loading quantity (Polywood)		44/88	44/88	22/88	44/88	22/88	22/44
IP Grade (Level of protection)		IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Anti-electric shock Rate		I	I	I	I	I	I
Refrigerant		R290/1.0kg	R290/0.95kg	R290/1.45kg	R290/1.1kg	R290/1.45kg	R290/1.4kg
Compressor	Brand	HIGHLY	HIGHLY	HIGHLY	HIGHLY	HIGHLY	HIGHLY
Compressor
Water pump	Brand	SHIMGE	SHIMGE	SHIMGE	SHIMGE	SHIMGE	SHIMGE
Water pump
Operation Ambient Temp. (℃)		-25~43℃
Operating water temperature (℃)		20~65℃(DHW)
Operating water temperature (℃)		20~70℃(Heating)
Operating water temperature (℃)		7~35℃(Cooling)
