DC Inverter pool heat pump

PATENT DESIGN

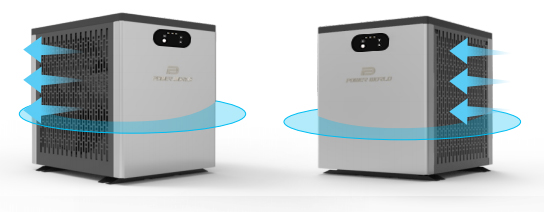

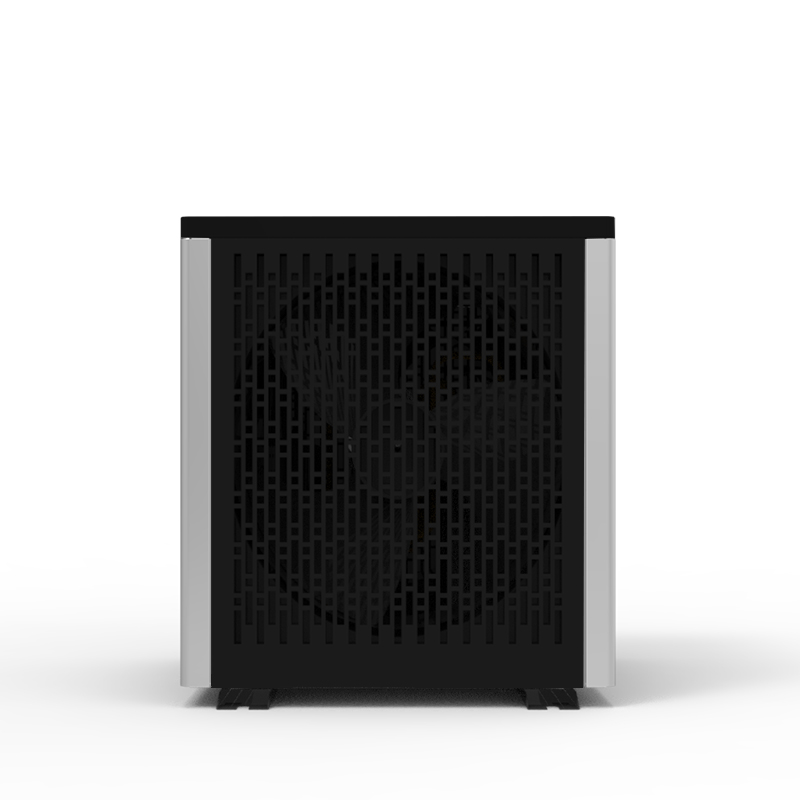

Patented unique design: Square structure design with arc style corner. The air inlet and outlet are symmetrically design.

mini pool heat pump

SUPER SILENCE

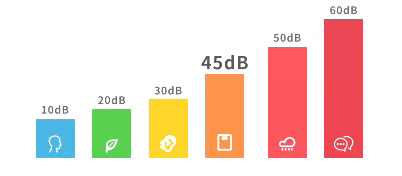

Thanks to patented silent-design, it makes a quieter swimming environment and friendly neighborhood for you. The sound level is only 45dB.

mini pool heat pump

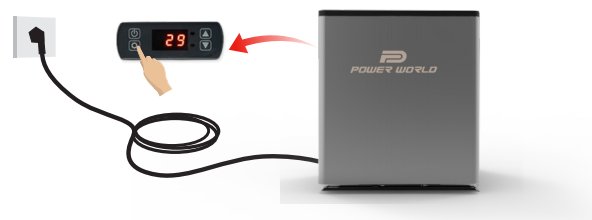

SIMPLE INSTALLATION & OPERATION
Easy plug & play and press & heat controller bring more comfortable & convenient experience to end user.

INTELLIGENT DEFROSTING
The unit is equipped with a four-way valve, which can intelligently defrost, efficiently and quickly, in low ambient temperature, perfectly adapt to the needs of different temperature areas.
This also assures the wide application range -5 ~ 43℃.

Model	PW008-KZXYC-F	PW015-KZXYC-F
Advised pool volume (m3)	10~20	15~25
Operating air temperature (℃)	-5~43℃
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	4.0~1.0	5.5~1.4
Heating Capacity(Btu)	13600~3400	18700~4760
Consumed power (kW)	0.8~0.11	1.1~0.15
COP	5.0~9.5	5.0~9.6
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	2.5~0.65	3.7~0.8
Heating Capacity(Btu)	8500~2210	12580~2720
Consumed power (kW)	0.6~0.1	0.9~0.13
COP	4.0~6.1	4.0~6.0
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	2.0	3.3
Sound pressure at 1m dB(A)	46	48
Sound pressure at 10m dB(A)	30	32
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	220 ~240V/1 Ph/50Hz-60Hz
Water Connection (mm)	Φ32
Rated input current at air 15℃（A）	2.6~0.4	3.9~0.57
Advised water flux (m³/h)	1.5-2.0	2.0-2.5
Water Pressure Drop (max) kPa	2	4
Net weight/Gross weight（kg)	26/28	34/37
Product size（mm）	394444435	498499500
Package size（mm）（carton）	420510485	555576542
Package size（mm）（Polywood）	437510475	572576545
Loading quantity (20GP/40GP/40HQ)	208/416/520	144/288/288
Refrigerant	R32
Compressor	Gree
Four-way valve	Sanhua
Expansion valve	Sanhua
Operating water temperature (℃) heating	9 ~43
Operating water temperature (℃) cooling	9 ~35

Model	PW008-KZXYC-F	PW015-KZXYC-F
Advised pool volume (m3)	10~20	15~25
Operating air temperature (℃)	-5~43℃
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	4.0~1.0	5.5~1.4
Heating Capacity(Btu)	13600~3400	18700~4760
Consumed power (kW)	0.8~0.11	1.1~0.15
COP	5.0~9.5	5.0~9.6
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	2.5~0.65	3.7~0.8
Heating Capacity(Btu)	8500~2210	12580~2720
Consumed power (kW)	0.6~0.1	0.9~0.13
COP	4.0~6.1	4.0~6.0
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	2.0	3.3
Sound pressure at 1m dB(A)	46	48
Sound pressure at 10m dB(A)	30	32
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	220 ~240V/1 Ph/50Hz-60Hz
Water Connection (mm)	Φ32
Rated input current at air 15℃（A）	2.6~0.4	3.9~0.57
Advised water flux (m³/h)	1.5-2.0	2.0-2.5
Water Pressure Drop (max) kPa	2	4
Net weight/Gross weight（kg)	26/28	34/37
Product size（mm）	394444435	498499500
Package size（mm）（carton）	420510485	555576542
Package size（mm）（Polywood）	437510475	572576545
Loading quantity (20GP/40GP/40HQ)	208/416/520	144/288/288
Refrigerant	R32
Compressor	Gree
Four-way valve	Sanhua
Expansion valve	Sanhua
Operating water temperature (℃) heating	9 ~43
Operating water temperature (℃) cooling	9 ~35
