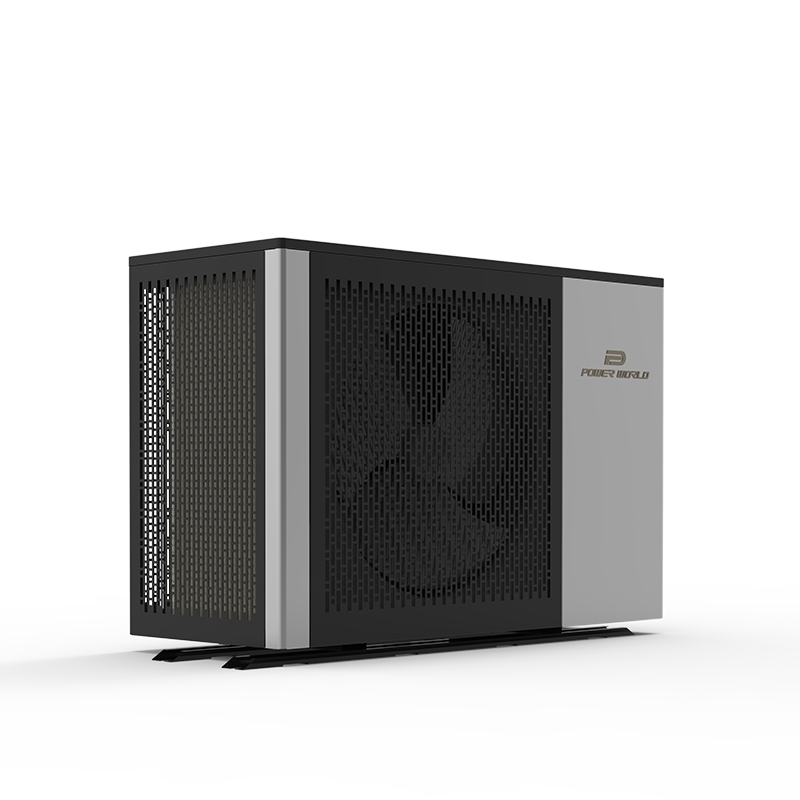

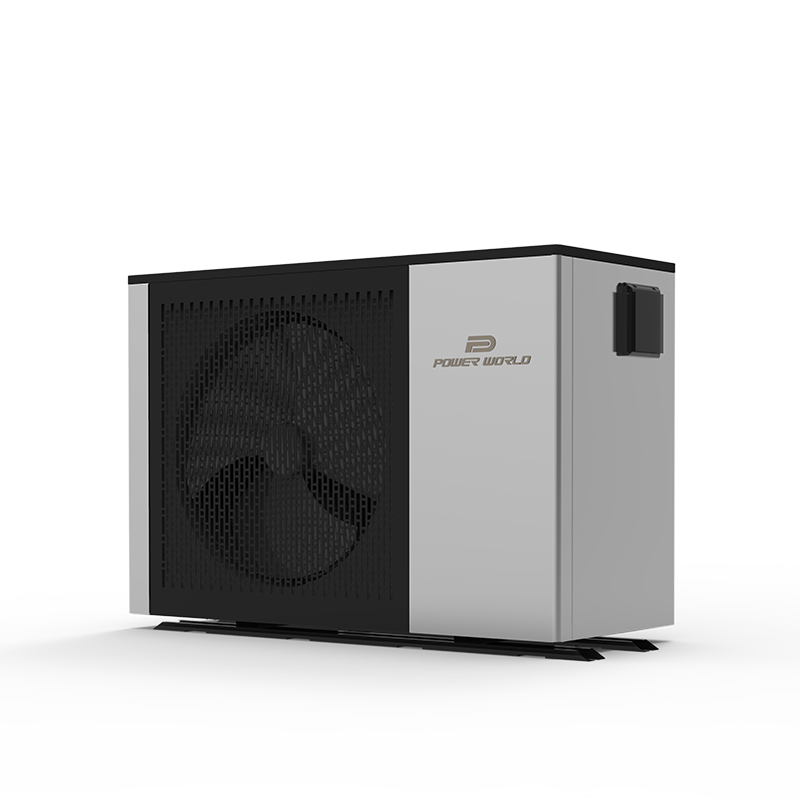

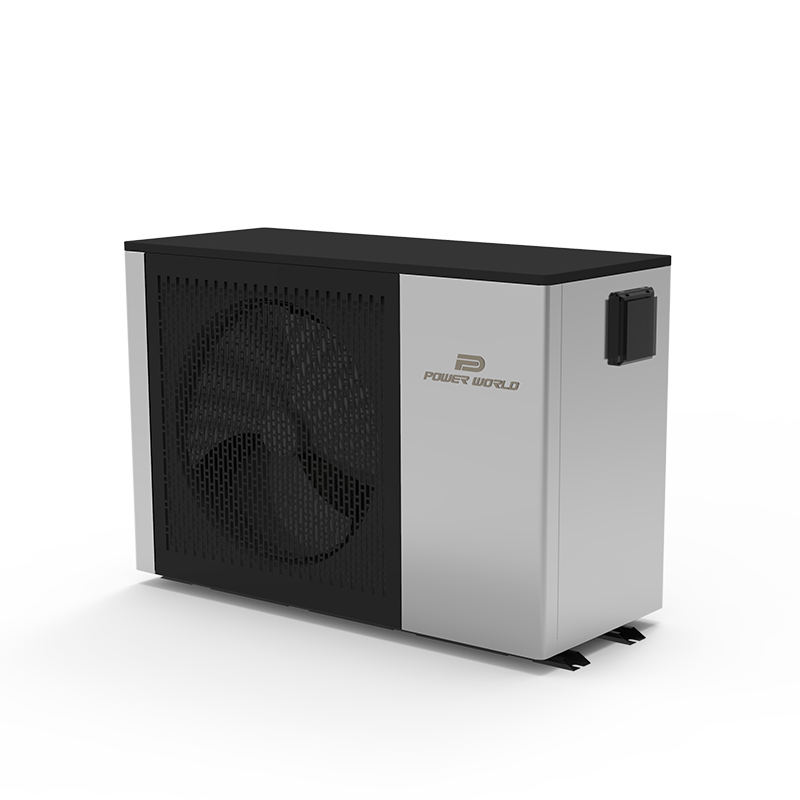

/New/ Full Inverter Pool Heat Pump

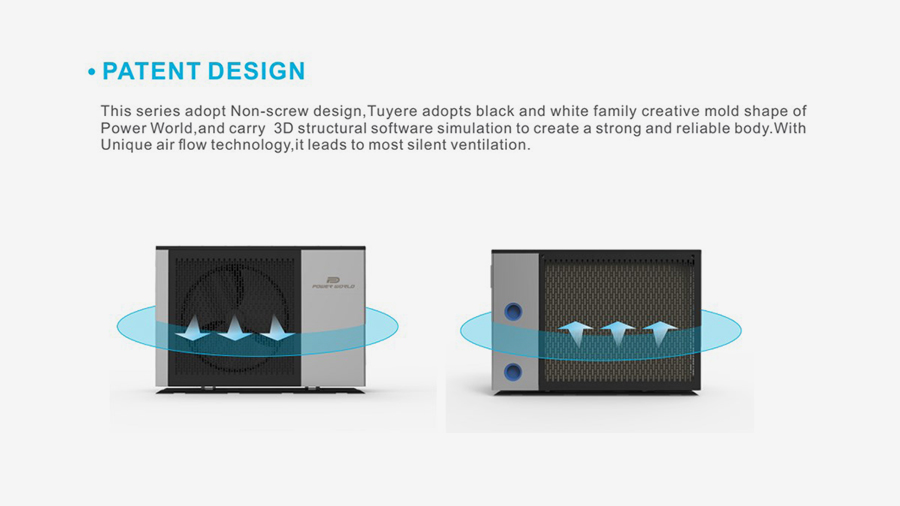

PATENT DESIGN

This series adopt Non-screw design,Tuyere adopts black and white family creative mold shape of Power World,and carry 3D structural software simulation to create a strong and reliable body.With Unique air flow technology,it leads to most silent ventilation.

smart pool heater

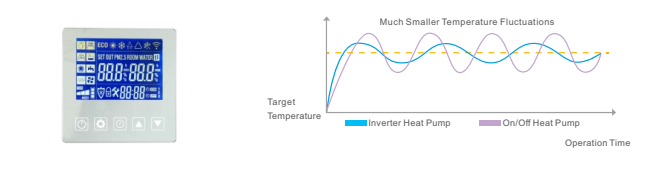

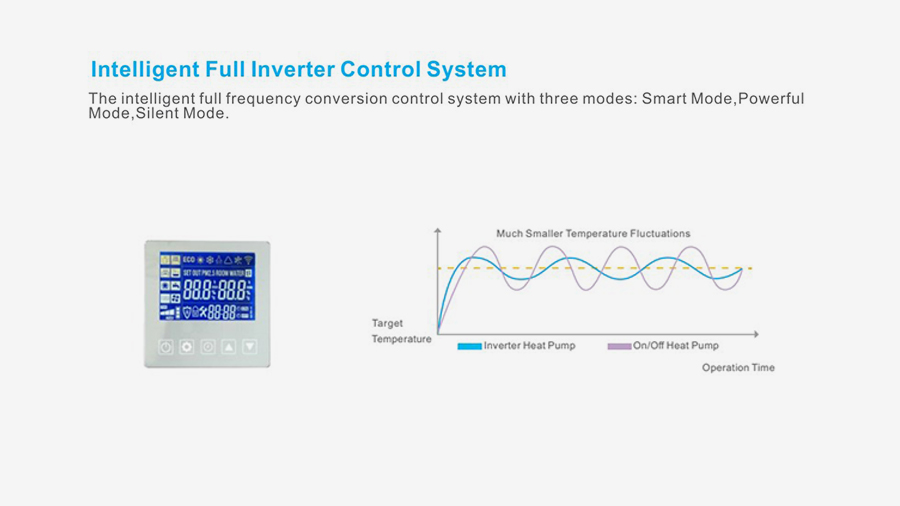

Intelligent Full Inverter Control System

The intelligent full inverter control system with three modes:Smart Mode,Powerful Mode,Silent Mode.

smart pool heater

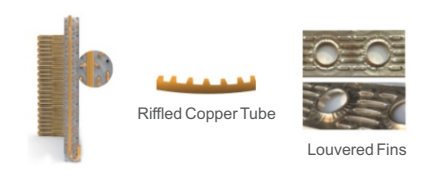

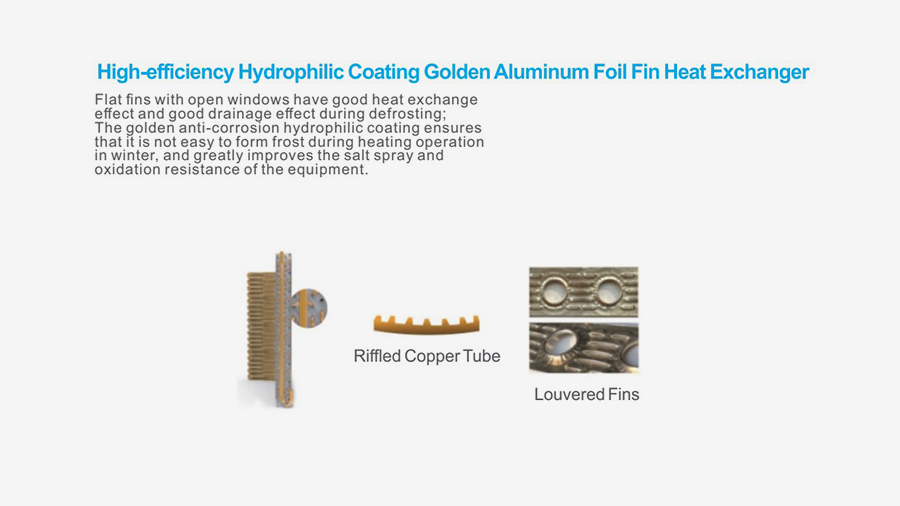

High-efficiency hydrophilic coating golden aluminum foil fin heat exchanger

Flat fins with open windows have good heat exchange effect and good drainage effect during defrosting;The golden anti-corrosion hydrophilic coating ensures that it is not easy to form frost during heating operation
in winter, and greatly improves the salt spray and oxidation resistance of the equipment.

smart pool heater

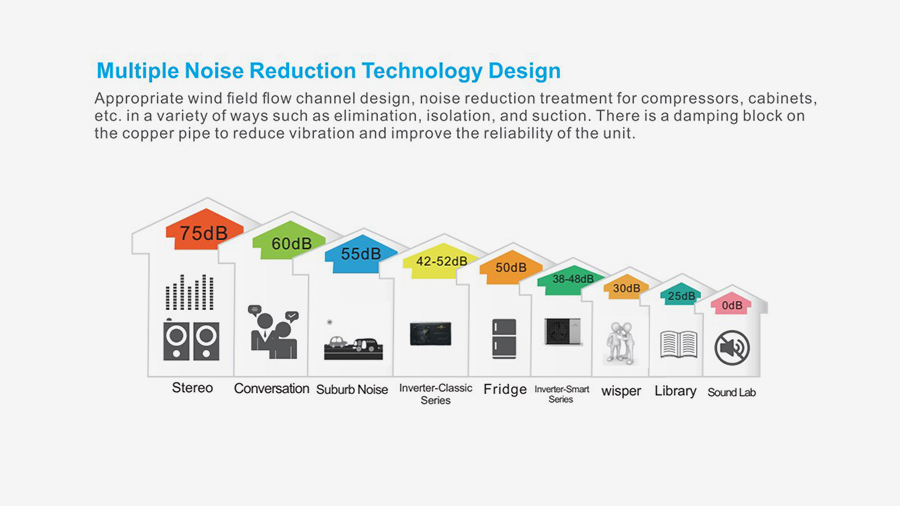

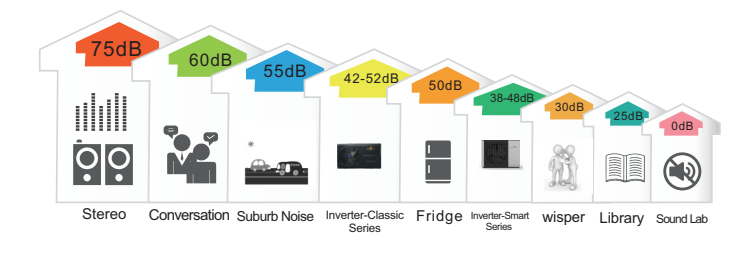

Multiple noise reduction technology design

Appropriate wind field flow channel design, noise reduction treatment for compressors, cabinets, etc. in a variety of ways such as elimination, isolation, and suction. There is a damping block on the copper pipe to reduce vibration and improve the reliability of the unit.

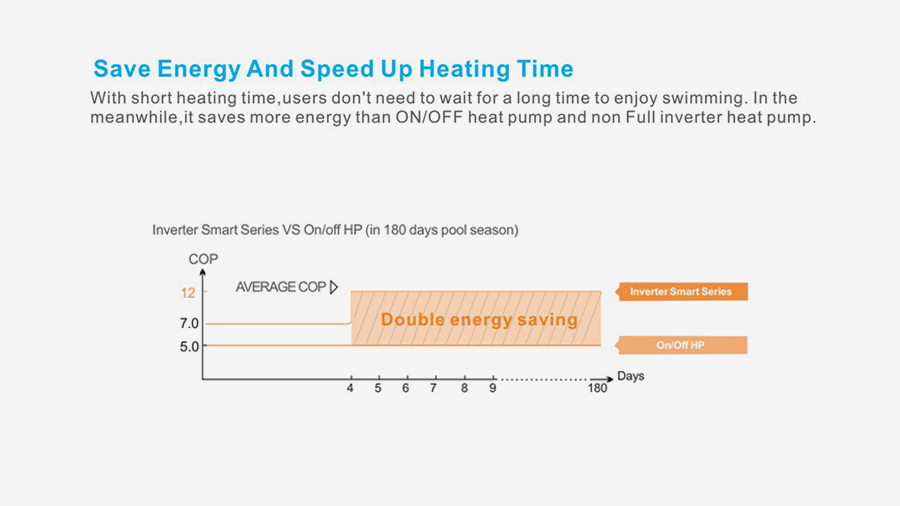

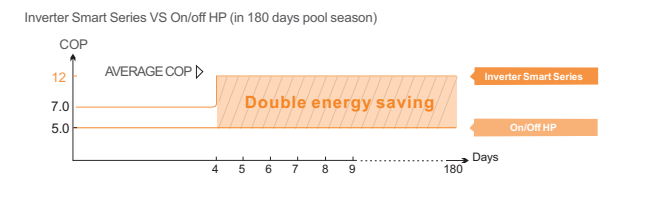

Save Energy And Speed Up Heating Time

With short heating time,users don't need to wait for a long time to enjoy swimming. In the meanwhile,it saves more energy than ON/OFF heat pump and non Full inverter heat pump.

smart pool heater

Model	PW010-KZXYC-C	PW015-KZXYC-C	PW020-KZXYC-C	PW030-KZXYC-C	PW040-KZXYC-C	PW050-KZXYC-C
Advised pool volume (m3)	15~30	20~40	25~50	30~60	40~75	55~100
Operating air temperature (℃)	-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	7.50~1.92	9.50~2.10	11.00~2.50	14.00~3.15	17.00~3.75	20.00~4.00
Heating Capacity(Btu)	25500~6528	32300~7140	37400~8500	47600~10710	57800~13090	68000~13600
Consumed power (kW)	1.36~0.15	1.73~0.16	2.00~0.19	2.54~0.24	3.1~0.28	3.64~0.31
COP	5.5~12.8	5.5~13.1	5.5~13.2	5.5~13.0	5.5~13.4	5.5~12.9
COP at 50% capacity	9.00	9.50	9.50	9.00	9.50	9.50
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	5.80~1.42	7.2~1.50	8.5~1.65	10.7~2.40	13.0~2.65	15.6~2.85
Heating Capacity(Btu)	19720~4828	24480~5100	28900~5610	36380~8160	44200~9010	53040~9690
Consumed power (kW)	1.28~0.22	1.60~0.23	1.89~0.25	2.38~0.37	2.89~0.41	3.47~0.44
COP	4.5~6.5	4.5~6.5	4.5~6.5	4.5~6.5	4.5~6.5	4.5~6.5
COP at 50% capacity	5.20	5.50	5.50	5.20	5.50	5.50
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	4.0	5.2	6.0	7.2	8.6	10.1
Sound pressure at 1m dB(A)	38~48	38~48	40~50	42~51	43~52	43~53
Sound pressure of 50% capacity at 1m dB(A)	40	40	41	43	44	44
Sound pressure at 10m dB(A)	18~25	18~25	19~26	22~27	23~30	24~31
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	230V/1 Ph/50Hz
Water Connection (mm)	Φ50
Rated input current at air 15℃（A）	5.6~1.0	7.0~1.0	8.3~1.1	10.5~1.6	12.6~1.8	15.2~1.9
Advised water flux (m³/h)	2~4	2~4	3~5	4~6	6~9	8~10
Water Pressure Drop (max) kPa	2	3	4	5	5	6
Net weight/Gross weight（kg)	48/53	50/55	53/58	62/67	67/72	67/72
Carton size（mm）	912360610			980370760
Refrigerant consumption（g）	370g	470g	450g	570g	750g	800g

Model	PW010-KZXYC-C	PW015-KZXYC-C	PW020-KZXYC-C	PW030-KZXYC-C	PW040-KZXYC-C	PW050-KZXYC-C
Advised pool volume (m3)	15~30	20~40	25~50	30~60	40~75	55~100
Operating air temperature (℃)	-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	7.50~1.92	9.50~2.10	11.00~2.50	14.00~3.15	17.00~3.75	20.00~4.00
Heating Capacity(Btu)	25500~6528	32300~7140	37400~8500	47600~10710	57800~13090	68000~13600
Consumed power (kW)	1.36~0.15	1.73~0.16	2.00~0.19	2.54~0.24	3.1~0.28	3.64~0.31
COP	5.5~12.8	5.5~13.1	5.5~13.2	5.5~13.0	5.5~13.4	5.5~12.9
COP at 50% capacity	9.00	9.50	9.50	9.00	9.50	9.50
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	5.80~1.42	7.2~1.50	8.5~1.65	10.7~2.40	13.0~2.65	15.6~2.85
Heating Capacity(Btu)	19720~4828	24480~5100	28900~5610	36380~8160	44200~9010	53040~9690
Consumed power (kW)	1.28~0.22	1.60~0.23	1.89~0.25	2.38~0.37	2.89~0.41	3.47~0.44
COP	4.5~6.5	4.5~6.5	4.5~6.5	4.5~6.5	4.5~6.5	4.5~6.5
COP at 50% capacity	5.20	5.50	5.50	5.20	5.50	5.50
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)	4.0	5.2	6.0	7.2	8.6	10.1
Sound pressure at 1m dB(A)	38~48	38~48	40~50	42~51	43~52	43~53
Sound pressure of 50% capacity at 1m dB(A)	40	40	41	43	44	44
Sound pressure at 10m dB(A)	18~25	18~25	19~26	22~27	23~30	24~31
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	230V/1 Ph/50Hz
Water Connection (mm)	Φ50
Rated input current at air 15℃（A）	5.6~1.0	7.0~1.0	8.3~1.1	10.5~1.6	12.6~1.8	15.2~1.9
Advised water flux (m³/h)	2~4	2~4	3~5	4~6	6~9	8~10
Water Pressure Drop (max) kPa	2	3	4	5	5	6
Net weight/Gross weight（kg)	48/53	50/55	53/58	62/67	67/72	67/72
Carton size（mm）	912360610			980370760
Refrigerant consumption（g）	370g	470g	450g	570g	750g	800g
