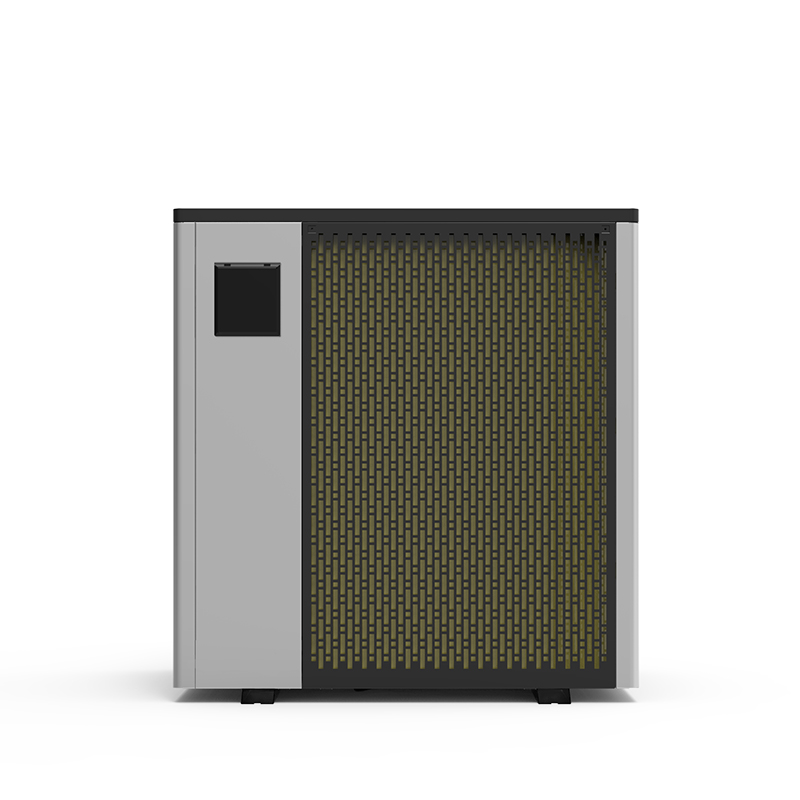

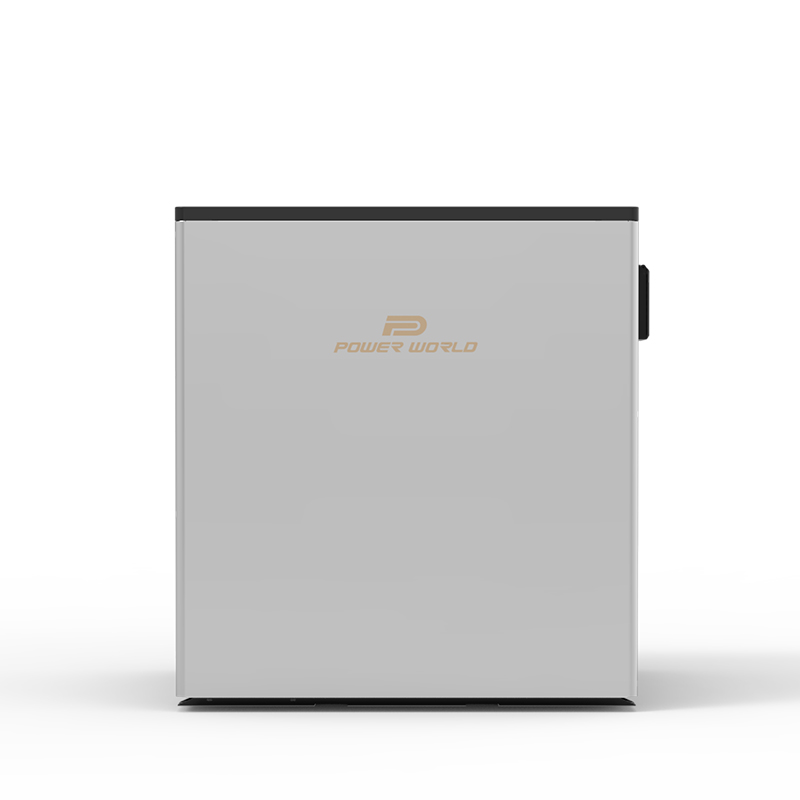

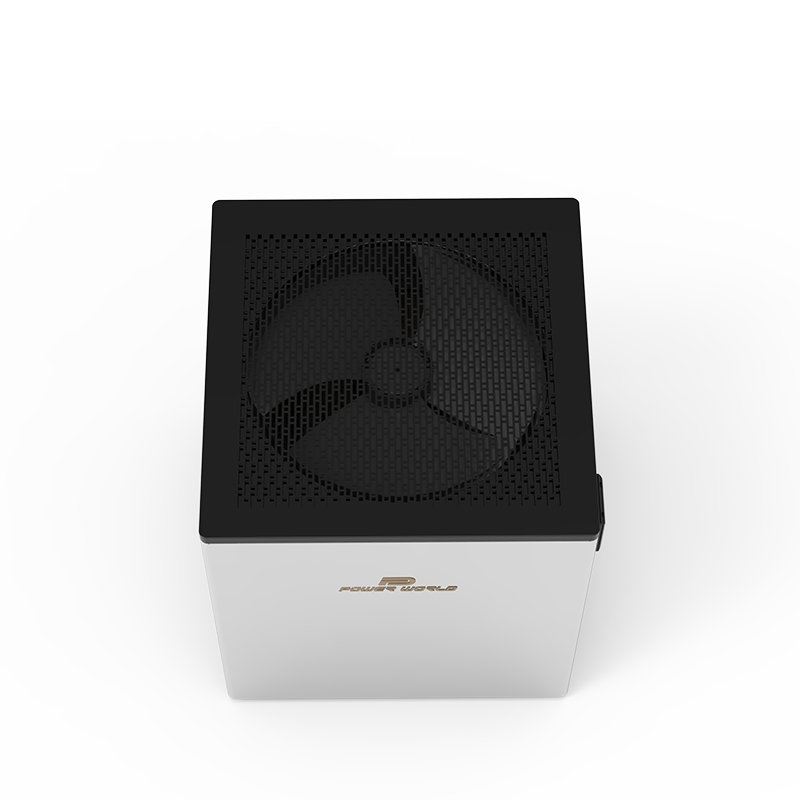

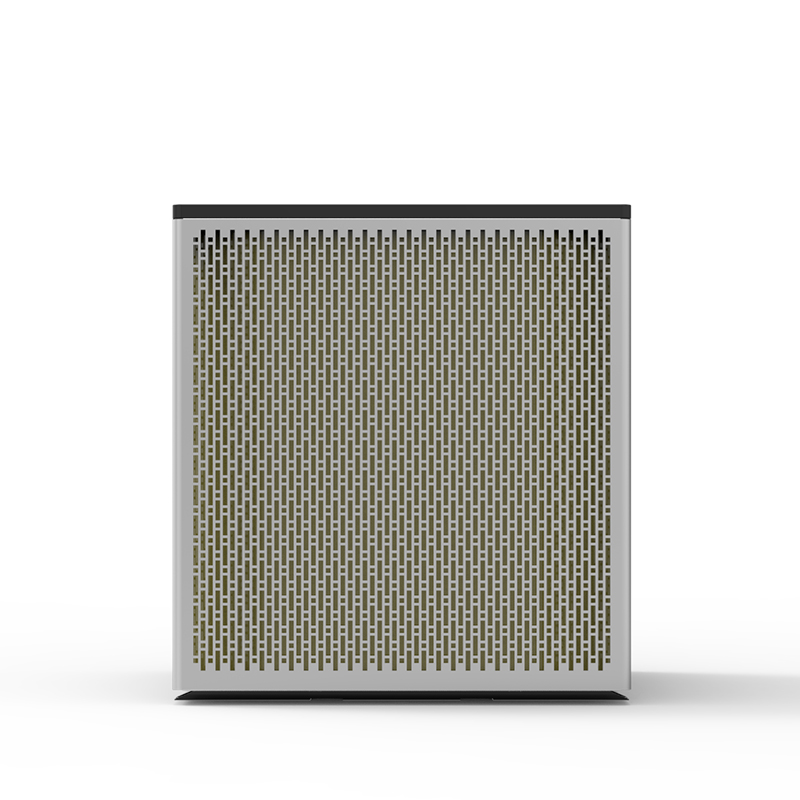

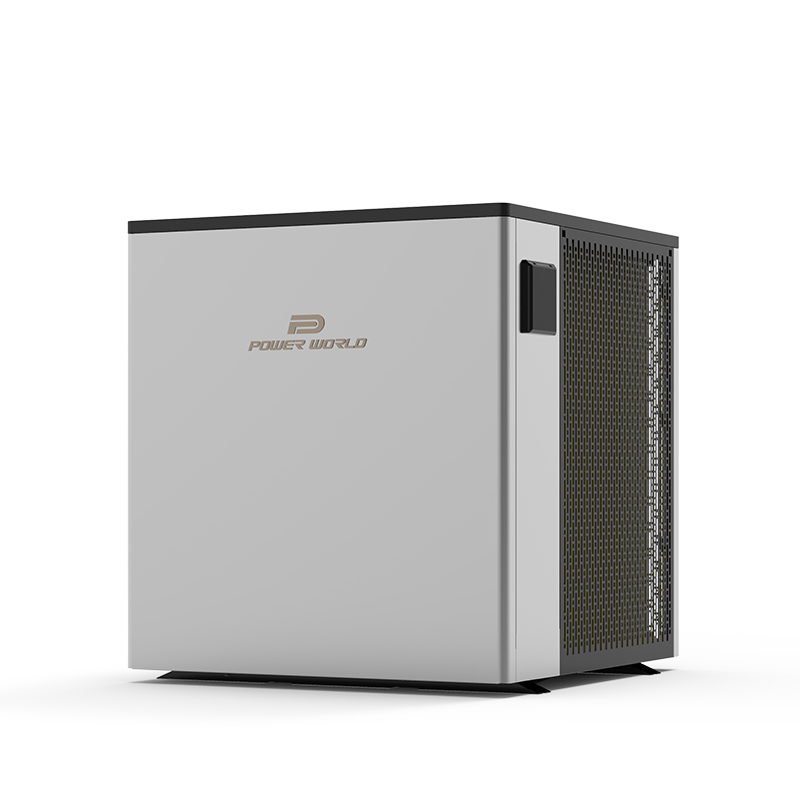

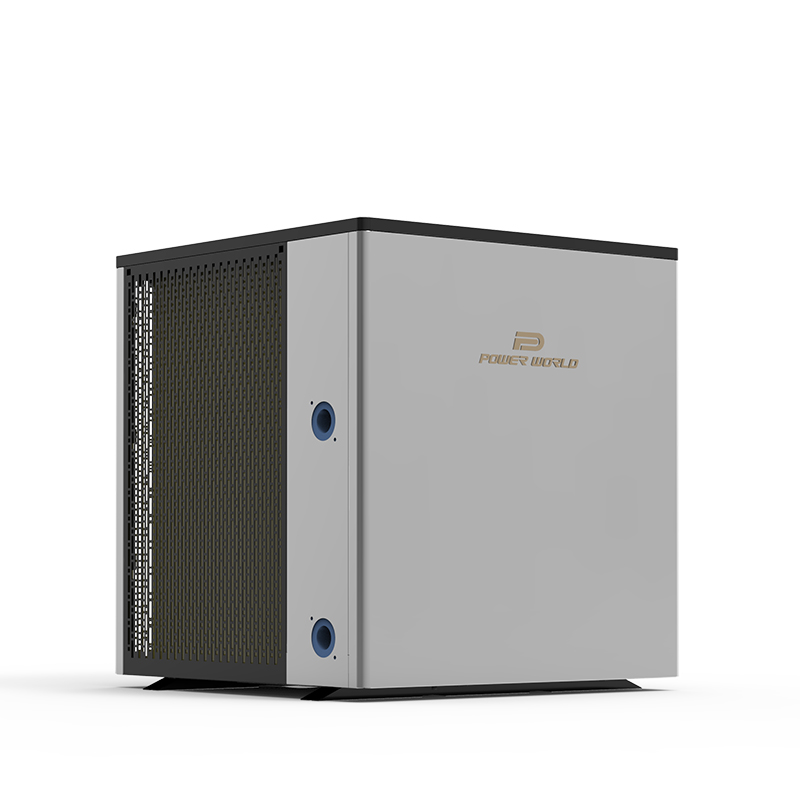

/New/ Full Inverter Pool Heat Pump

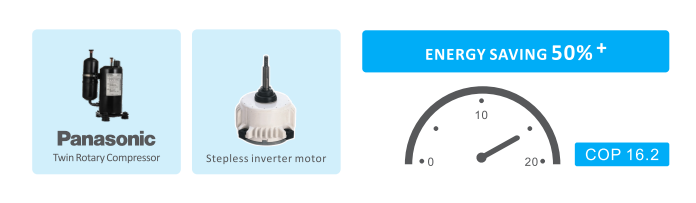

Advanced Technlogy: Full DC Inverter

Power World full DC inverter technology enables the heat pumps to adjust its power from 10% to 90%. With this technology, Power World Cubic Series can not only reduce 50% power consumption on average, but reach COP as high as 16.2 at Air 26℃/ Water 26 ℃/ Humidity 80%.

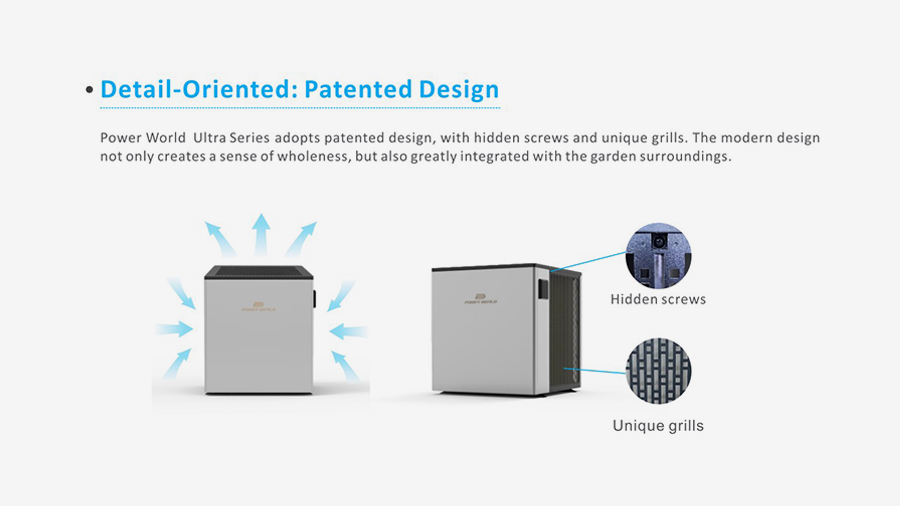

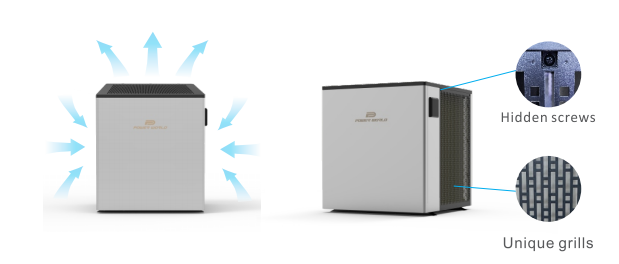

Detail-Oriented: Patented Design

Power World Cubic Series adopts patented design, with hidden screws and unique grills. The modern design not only creates a sense of wholeness, but also greatly integrated with the garden surroundings.

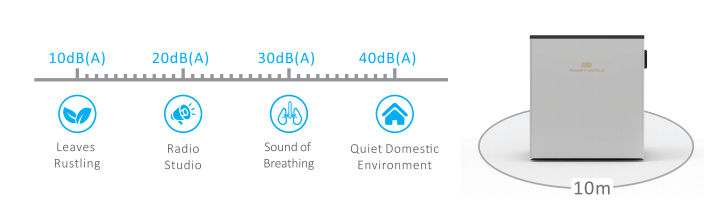

Ultra Silent Running: 18 dB(A) at 10m distance.

Thanks to the twin-rotary compressor and unique structure design, the running noise of Cubic series is as low as 18 dB(A) at 10m distance. It’s pretty suitable for use at night, and brings more harmonious neighborhood relationship.

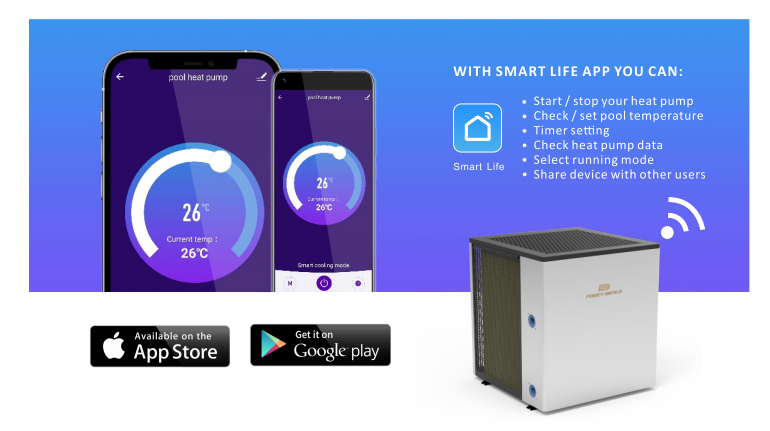

Intelligent Living: App Remote Control

Your life may lose control sometimes, but your pool temperature is always at your fingertips. A smart app brings an easy access to your pool temperature anytime and anywhere. Go! Get your pool preheated and embrace deep relaxation after a tiring day.

R32 inverter pool heat pump

Model		PW030-DKZXYC-D	PW040-DKZXYC-D	PW050-DKZXYC-D	PW060-DKZXYC-D	PW070-DKZXYC-D	PW070-DKZXYC-DT	PW080-DKZXYC-DT
Advised pool volume (m3)		25~50	30~60	40~75	50~90	60~100	60~100	70~120
Performance condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity	kW	14.0~3.20	17.50~3.50	21.5~5.00	24.50~5.50	28.50~7.00	28.50~7.00	32.50~7.5
Heating capacity	BTU	47600~10880	59500~11900	73100~17000	83300~18700	96900~23800	96900~23800	110500~25500
Power Input	kW	1.94~0.20	2.50~0.22	3.10~0.31	3.65~0.34	4.20~0.44	4.20~0.44	5.00~0.48
COP		7.2~16.0	7.0~15.9	6.9~16.1	6.7~16.2	6.8~15.9	6.8~15.9	6.5~15.6
COP at 50% capacity		12.00	12.00	12.00	12.00	12.00	12.00	11.50
Performance condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity	kW	10.51~2.48	13.0~2.57	16.25~3.60	19.10~4.2	22.5~5.0	22.5~5.0	25.5~5.5
Heating capacity	BTU	35734~8432	44200~8738	55250~12240	64940~14280	76500~17000	76500~17000	87720~18700
Power Input	kW	1.91~0.31	2.40~0.32	3.05~0.45	3.54~0.53	4.17~0.62	4.17~0.62	4.90~0.69
COP		5.5~8.0	5.4~8.0	5.3~8.0	5.4~7.9	5.4~8.1	5.4~8.1	5.2~8.0
COP at 50% capacity		7.00	7.00	7.00	7.00	7.00	7.00	6.80
Power supply	V/Ph/hZ	220-240 / 1 / 50-60	220-240 / 1 / 50-60	220-240 / 1 / 50-60	220-240 / 1 / 50-60	220-240 / 1 / 50-60	380-400 / 3 / 50-60	380-400 / 3 / 50-60
Heat exchanger		Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC
Fan Direction		Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
Compressor Quantity		1	1	1	1	1	1	1
Compressor		Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
Ambient temp. range	℃	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43
Wifi Module		Include	Include	Include	Include	Include	Include	Include
Sound level at 10m	dB(A)	18.5~27	22.0~27.5	22.5~29.5	23~30	23.5~31	23.5~31	24~32
Sound level at 1m	dB(A)	40~49	40~50	42~51	43~52	43~53	43~53	43~54
Sound level at 1m (50% capacity)	dB(A)	44	45	45	46	46.5	46.5	47
Water Connection	mm	50	50	50	50	50	50	50
Advised water flux	m³/h	4~6	6~8	7~9	8~10	9~11	9~11	10~12
Shipping dimension (LWH)	mm	700708752		745824852		895904912

Model		PW030-DKZXYC-D	PW040-DKZXYC-D	PW050-DKZXYC-D	PW060-DKZXYC-D	PW070-DKZXYC-D	PW070-DKZXYC-DT	PW080-DKZXYC-DT
Advised pool volume (m3)		25~50	30~60	40~75	50~90	60~100	60~100	70~120
Performance condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity	kW	14.0~3.20	17.50~3.50	21.5~5.00	24.50~5.50	28.50~7.00	28.50~7.00	32.50~7.5
Heating capacity	BTU	47600~10880	59500~11900	73100~17000	83300~18700	96900~23800	96900~23800	110500~25500
Power Input	kW	1.94~0.20	2.50~0.22	3.10~0.31	3.65~0.34	4.20~0.44	4.20~0.44	5.00~0.48
COP		7.2~16.0	7.0~15.9	6.9~16.1	6.7~16.2	6.8~15.9	6.8~15.9	6.5~15.6
COP at 50% capacity		12.00	12.00	12.00	12.00	12.00	12.00	11.50
Performance condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity	kW	10.51~2.48	13.0~2.57	16.25~3.60	19.10~4.2	22.5~5.0	22.5~5.0	25.5~5.5
Heating capacity	BTU	35734~8432	44200~8738	55250~12240	64940~14280	76500~17000	76500~17000	87720~18700
Power Input	kW	1.91~0.31	2.40~0.32	3.05~0.45	3.54~0.53	4.17~0.62	4.17~0.62	4.90~0.69
COP		5.5~8.0	5.4~8.0	5.3~8.0	5.4~7.9	5.4~8.1	5.4~8.1	5.2~8.0
COP at 50% capacity		7.00	7.00	7.00	7.00	7.00	7.00	6.80
Power supply	V/Ph/hZ	220-240 / 1 / 50-60	220-240 / 1 / 50-60	220-240 / 1 / 50-60	220-240 / 1 / 50-60	220-240 / 1 / 50-60	380-400 / 3 / 50-60	380-400 / 3 / 50-60
Heat exchanger		Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC	Spiral titanium in PVC
Fan Direction		Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
Compressor Quantity		1	1	1	1	1	1	1
Compressor		Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
Ambient temp. range	℃	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43
Wifi Module		Include	Include	Include	Include	Include	Include	Include
Sound level at 10m	dB(A)	18.5~27	22.0~27.5	22.5~29.5	23~30	23.5~31	23.5~31	24~32
Sound level at 1m	dB(A)	40~49	40~50	42~51	43~52	43~53	43~53	43~54
Sound level at 1m (50% capacity)	dB(A)	44	45	45	46	46.5	46.5	47
Water Connection	mm	50	50	50	50	50	50	50
Advised water flux	m³/h	4~6	6~8	7~9	8~10	9~11	9~11	10~12
Shipping dimension (LWH)	mm	700708752		745824852		895904912
